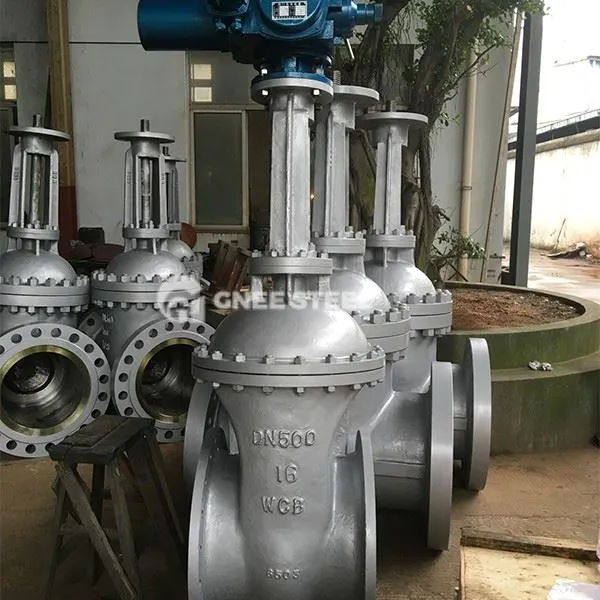

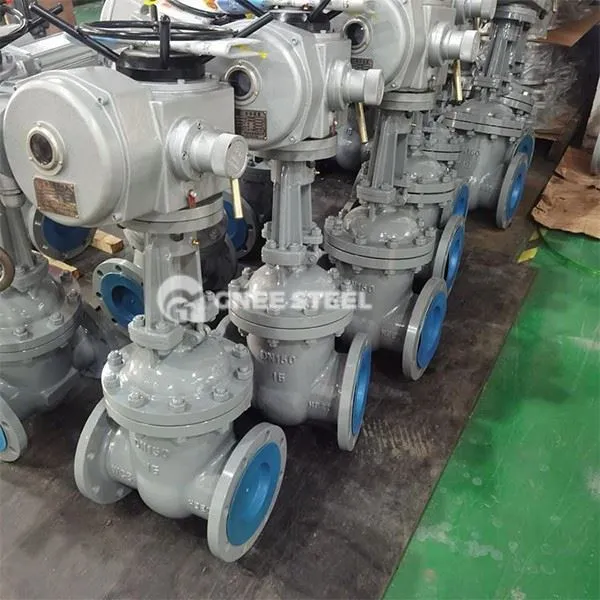

Carbon Steel Electric Gate Valve Description
Carbon steel electric gate valve is a valve that drives the gate plate to rise and fall by an electric actuator to achieve full opening or full closing control of pipeline media. Its valve body is made of carbon steel and is suitable for industrial pipeline systems with medium, high pressure and high temperature conditions.
Carbon Steel Electric Gate Valve specification
|
item |
value |
|
Application |
Industrial |
|
Port Size |
DN15–DN500 |
|
Warranty |
12 Months |
|
Place of Origin |
Henan, China |
|
Power |
Electric |
|
Brand Name |
GNEE |
|
Structure |
Gate |
|
Customized support |
OEM |
|
Product name |
Carbon Steel Gate Valve |
|
Material |
Carbon Steel |
|
Application |
Oil and Gas Industry |
|
Power |
Manuel |
|
Connection |
Flange Ends |
|
Pressure |
PN16–PN64 |
|
Standard |
ANSI Standard |
|
Packing |
Wooden Box |
Carbon Steel Electric Gate Valve for sale
Features
- Pressure and temperature resistance: working pressure up to 6.4MPa (PN64), temperature range -29℃～600℃;
- Low flow resistance: straight-through flow channel design, minimal pressure loss, suitable for large flow pipelines;
- Corrosion resistance: better than ordinary cast iron, but weaker than stainless steel; strong acid and high chloride ion media must be avoided;
- Control convenience: supports remote/automatic control, suitable for dangerous or difficult manual operation environments.
Applications
- Energy and power: steam pipelines in thermal power plants, water inlet and outlet systems in hydropower stations;
- Petrochemical: opening and closing control of crude oil and refined oil pipelines;
- Industrial fluids: high-temperature fluid cutoff in water treatment and metallurgical industries;
- Special working conditions: places requiring explosion-proof design (optional explosion-proof electric actuator).
