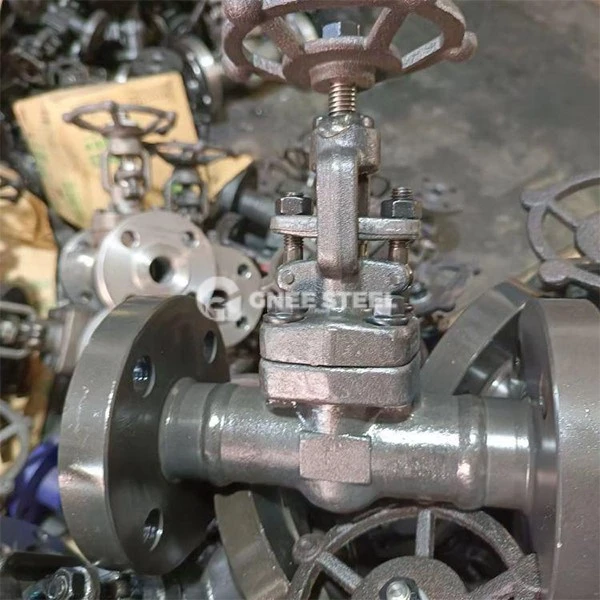

Forged Steel Gate Valve Description
Forged steel gate valve is a valve that realizes the medium on and off by the vertical movement of the gate. Its opening and closing parts are gates, and the movement direction is perpendicular to the fluid. It only supports full opening or full closing, and cannot adjust the flow.
Sealing method: The gate and the valve seat are pressed by wedge-shaped or parallel sealing surfaces, relying on external force to force sealing. When closing, additional pressure is required to ensure zero leakage.
Driving form: Supports manual, pneumatic, electric or hydraulic operation, suitable for high pressure (Class 150–2500) and high temperature (-29℃~550℃) working conditions.
Structural type and material properties
Sealing surface form
Wedge gate valve: The gate is wedge-shaped, and the sealing surface is at a certain angle with the vertical center line, which is suitable for high pressure difference media;
Parallel gate valve: Double gate parallel structure, sealing is achieved by spring pre-tightening, mostly used for particle-containing media.
Material selection
Valve body and gate: commonly used forged steel (A105, A216 WCB), stainless steel (F304/F316) or alloy steel (F11/F22), taking into account both pressure resistance and corrosion resistance; Sealing surface treatment: nitriding, hard chrome plating or hard alloy surfacing to improve wear resistance (hardness ≥HRC58).
Forged Steel Gate Valve Specification
|
item |
valve |
|
Application |
Industrial Usage,Water Industrial Usage,Household Usage |
|
Port Size |
DN10-DN1000 |
|
Warranty |
24 month |
|
Place of Origin |
China |
|
Henan |
|
|
Power |
Manual,Electric,Pneumatic,Hydraulic |
|
Temperature of Media |
Low Temperature/High Temperature/Normal Temperature/Media Temperature |
|
Brand Name |
GNEE |
|
Structure |
Fixed and Float Ball Valve |
|
Media |
Gas,Oil,Water,Steam |
|
Customized support |
OEM, ODM, OBM |
|
Delivery Time |
7-15 Days |
|
Coating |
Customized |
|
Function |
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve |
|
Valve Body |
Forged Welding |
|
Body Material |
304, 304L, 316L |
|
Standard |
API609 En593 BS5155 En1092 ISO5211 |
|
Port Sizes |
Full Bore, and Reduced Bore |
|
Application Fields |
Water, Petroleum and Natural Gas |
|
Design & Manufacture |
BS6364, Mesc Spe77/200, Jb/T7749 |
|
Fire Safe Design |
API607, API 6fa |
Advantages and limitations
| Terms | Advantages | limitation |
|---|---|---|
| Fluid resistance | When fully open, the flow channel is straight, with minimal resistance, suitable for large flow conditions. | The structure is long and takes up a lot of space for installation. |
| Sealing | Forced seal design can adapt to high pressure environment (up to 42MPa) | The friction on the sealing surface during opening and closing can easily cause scratches, which may cause leakage after long-term use. |
| Maintenance costs | Forged steel material is resistant to high temperature and high pressure and has a long service life | The processing and grinding of the double sealing surfaces are complicated, and the valve body needs to be disassembled for maintenance. |
