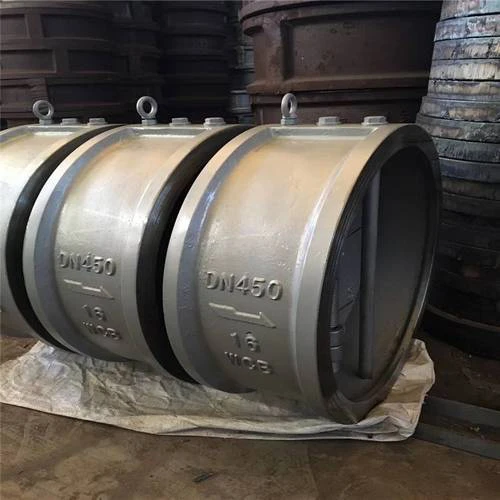

Dual Plate Check Valve: An Overview
A dual plate check valve is an automatic non-return valve designed to prevent reverse flow in liquid and gas piping systems. Designed and manufactured according to API 594, EN 16767, and applicable API 6D requirements, it features two symmetric side-hinged discs and a retainerless one-piece body construction. Commonly available from DN 50 to DN 1400 (NPS 2 to NPS 56 depending on manufacturer) and Pressure ratings typically range from Class 150 to Class 1500, with higher classes available for special applications. Operating temperature capability depends on material selection and sealing design, ranging from cryogenic service around -196°C to high-temperature applications above 300°C. Its compact face-to-face dimensions and fast-acting closure response make it a widely specified component across water, oil and gas, chemical, and power generation sectors.
1. Dual Plate Check Valve specification
Temperature range: -320 to 662°F (-196 to 350°C)
Size: NPS 2-48 (DN 50- 1200)
Pressure rating: ASME 150 - ASME 2500
Face-to-face: As per API 594 Standard. Also complies with API 6D, ISO 14313, ASME B16.10
End connections: RF, RTJ as per B16.5 &B16.47
Body design: Lug, Wafer or Double flanged configuration in forged or cast one-piece
Seat design: Metal-seated with hardfacing on disks and seat
2. Primary Uses and Applications
Dual plate check valves serve as protective flow components across diverse industrial sectors, safeguarding piping integrity and sustaining stable unidirectional transport.
Water and wastewater infrastructure: Installed in municipal water distribution networks, sewage treatment facilities, and desalination plants, these valves cover sizes from DN 40 to DN 1400 per EN 16767. They protect pumping stations from flow inversion, requiring a minimum back pressure of 0.3–0.5 bar to achieve tight sealing in clean water and filtered irrigation systems.
Oil and gas transmission: Manufactured to API 594 and API 6D standards with pressure ratings up to Class 2500, these valves regulate flow in crude oil, natural gas, and refined product pipelines. Metal-seated designs with hardfaced sealing surfaces provide improved wear resistance for high-temperature and erosive services.
Chemical and process manufacturing: Fabricated from austenitic stainless steel, super duplex steel, and nickel alloys, the valves meet ASME B16.34 requirements for corrosive fluid handling. Super duplex stainless steel grades typically provide yield strength above 550 MPa and high PREN values for chloride-containing environments.
Power generation and industrial utilities: Deployed in cooling water circuits of thermal power plants, fire protection networks, and air compressor lines, the valves support both horizontal and vertical pipe installation. Their inherent low pressure drop characteristic helps minimize hydraulic losses in continuous-flow systems.
3. Key Benefits and Advantages
The retainerless body architecture and lightweight disc design deliver measurable performance gains relative to conventional full-bore swing check valves.
Zero external leakage structure: The retainerless one-piece body design eliminates external wall penetrations, removing potential fugitive emission paths in compliance with API 6FA fire-safe specifications. Without drilled holes for hinge pin mounting, the valve maintains intrinsic fire safety for high-risk hydrocarbon and chemical process environments.
Mitigated water hammer and slamming: Lightweight dual discs paired with high-torsion alloy springs enable fast-acting closure, minimizing reverse flow velocity and resultant water hammer pressure spikes. Integrated shock bumpers reduce internal trim wear, extending valve cycle life under severe cyclic service conditions.
Low pressure drop and energy efficiency: Side-hinged disc geometry eliminates gravity-induced opening resistance, producing lower pressure loss than traditional swing check valves. When fully open, centered discs form a symmetrical flow path with no seat dragging effect, preserving long-term sealing surface integrity.
Broad configuration and material flexibility: Offered in wafer, lug, and double-flange end styles, the valves support base materials from ductile iron to Hastelloy across a -196 °C to 350 °C temperature range. They are pressure tested per API 598 and EN 12266 standards, with custom material formulations to match project-specific corrosion requirements.
4. Future Development Prospects
Progress in metallurgy and digital sensing technologies is driving continuous improvements in materials, monitoring, and hydraulic design.
Advanced corrosion-resistant alloys: Super duplex stainless steels with 50/50 ferrite-austenite microstructures will expand deployment in seawater desalination systems. Alloys with pitting resistance equivalent numbers above 40 will deliver longer service life in high-chloride environments compared to standard 316L austenitic stainless steel.
Expanded cryogenic performance: Refined material formulations and manufacturing processes will extend reliable operating limits below -196 °C, supporting liquefied natural gas and industrial cryogenic piping networks. Valves will be qualified to updated API 6D editions for consistent performance in extreme low-temperature service.
Integrated non-intrusive monitoring: Embedded non-penetrating sensors will enable real-time tracking of disc position, closure speed, and seat leakage without compromising body integrity. Collected operational data will support predictive maintenance schedules, reducing unplanned downtime in continuous-process industrial facilities.
Optimized hydraulic efficiency: Computational fluid dynamics modeling will refine disc and body flow profiles, further reducing pressure drop by an estimated 10–15 percent across common nominal size ranges. Lower flow resistance will translate to reduced pumping energy consumption in large-scale water and process piping networks.
5. Conclusion
Dual plate check valves address core functional requirements for unidirectional flow control across industrial piping systems, balancing compact installation footprint, reliable sealing performance, and reduced hydraulic impact. Their alignment with global API, ASME, and EN standards ensures dimensional interchangeability and regulatory compliance across regional markets. As material science and condition monitoring technologies advance, these valves will remain a standard specification for projects prioritizing leak prevention, equipment protection, and long-term operational efficiency.
