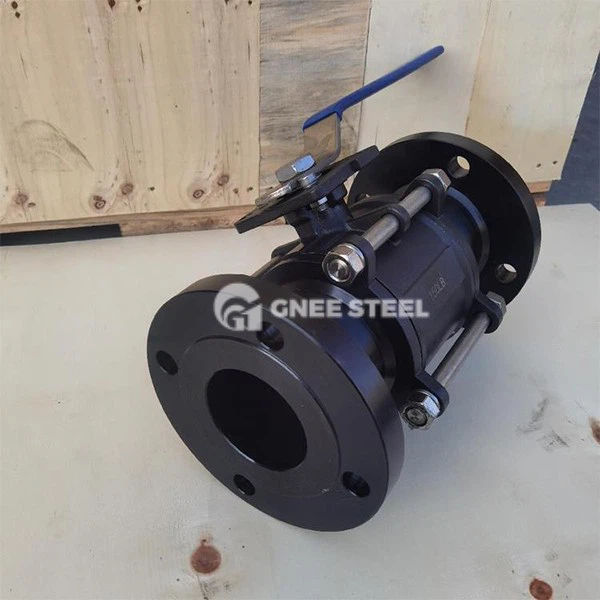

3-PC Flanged Ball Valve Description
Three-piece flanged ball valve is a kind of industrial valve with three-component bolted structure, which is connected with pipeline through flange to achieve efficient cut-off and flow control of fluid. Its core characteristics are as follows:
Structural composition
Three-component valve body structure
Left and right bonnets: cast steel (WCB) or stainless steel (CF8M), connected with the intermediate valve body through bolts;
Intermediate valve body Intermediate body: Wraps the ball and seal assembly, which can be disassembled separately for maintenance.
Seal actuating system
Ball: full diameter design (equal diameter with pipeline), surface hardening treatment to enhance wear resistance;
Floating seat: spring preloaded structure, under medium pressure, automatically press the ball to achieve bi-directional. Floating seat: spring preloaded structure, automatic compression of the ball under medium pressure to achieve bidirectional sealing;
Stem: lower mounted anti-ejection design, packing box using flexible graphite + disc spring compression.
Flange connection interface
Conforms to ANSI, DIN and other standard flanges, pressure covers PN16~PN64 (Class 150~400).
3-PC Flanged Ball Valve Specification
| Item | SS304 SS316 3pc Flanged Ball Valve | ||
| Size Range | DN15 to DN100 (1/2" to 10") | ||
| Pressure Rating | 1000 WOG | ||
| End Connection | Flange/Threaded | ||
| Body Materials | SS304 SS316 | ||
| Seat Materials | PTFE | ||
| Working Temperature | PTFE≤180°C, Metal Seated≤350°C | ||
| Optional Actuation | Pneumatic Actuated or Electric Actuated or Manual | ||

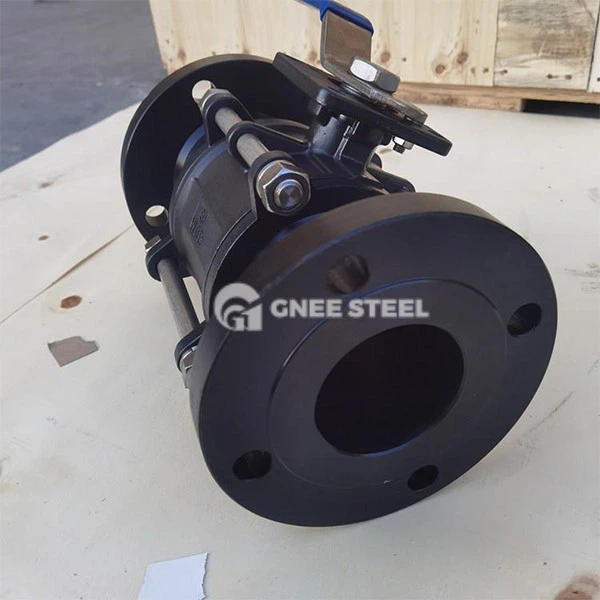

3-PC Flanged Ball Valve
Features
Removable Maintainability
Three-piece structure allows in-line removal of the bonnet and replacement of seals without disconnecting the pipeline.
Low flow resistance and efficient circulation
Full bore design flow resistance coefficient ≤ 0.08, flow loss close to zero.
Wide range of applicability
Temperature range: -29℃~350℃ (soft seal) / -196℃~550℃ (metal hard seal);
Applicable medium: water, oil The medium of application: water, oil, acid and alkali solutions and special media such as oxygen and ethylene.
Rapid opening and closing manoeuvre
90° rotation to achieve full opening/closing, supporting manual, pneumatic or electric actuators.
Applications
- Chemical production: reactor import and export control, corrosive media (acid/alkali) transport;
- Energy pipeline: oil and gas gathering and transmission, LNG station high pressure pipeline;
- Environmental protection equipment Sewage treatment system, seawater desalination pipeline;
- Food & Pharmaceutical: aseptic fluid control (with sanitary polished valve body).
