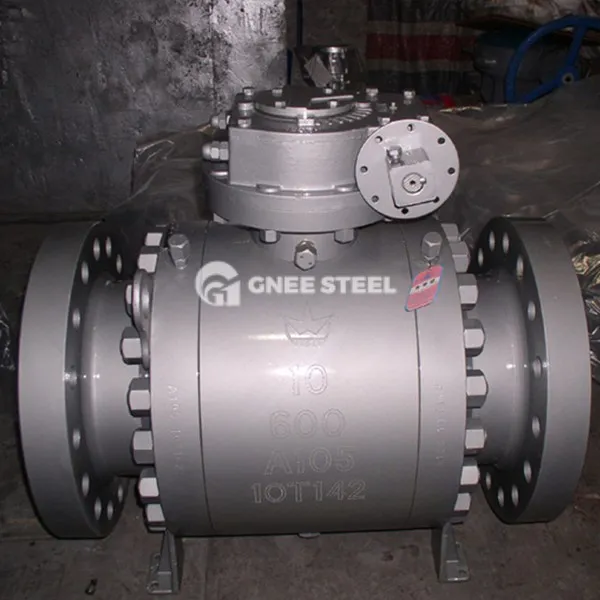

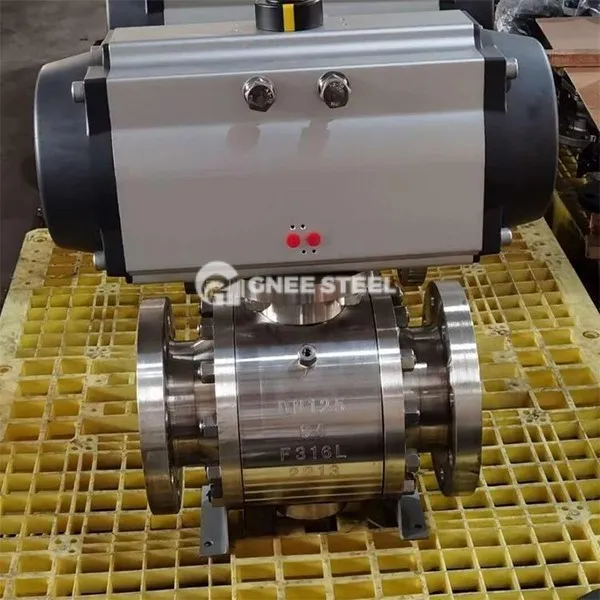

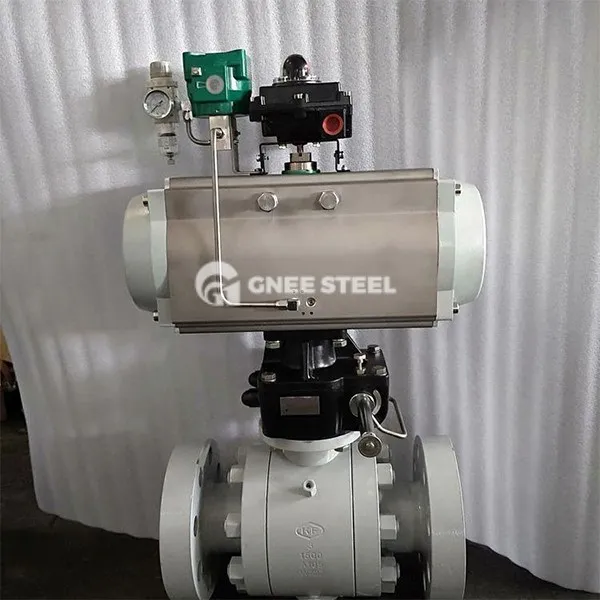

High-Pressure 2-Ways Ball Valves Description
High-pressure two-way ball valve is specially designed for high-pressure medium control. It adopts a two-piece valve body (main valve body + auxiliary valve body) and a flange connection structure. The medium is opened and closed or the flow direction is controlled by rotating the ball 90°. It is suitable for Class 150~2500LB (PN1.0~PN420) high-pressure scenarios.
The core structure includes:
Split valve body: The main and auxiliary valve bodies are connected by bolts or flanges, which is convenient for disassembly maintenance and seal replacement;
Floating/fixed ball design:
Floating ball: The medium pressure pushes the ball to press the sealing ring, which is suitable for medium and low pressure (≤PN25);
Fixed ball: The ball is fixed by the upper and lower valve stems, and the valve seat is floatingly sealed, which is suitable for ultra-high pressure (≥PN420);
Sealing form: Carbide seal (temperature resistant to 425℃), PTFE soft seal (≤180℃), leakage level reaches ANSI VI level.
High-Pressure 2-Ways Ball Valves specification
|
DN |
DN15~200mm |
|
Nominal Pressure |
1.6~42Mpa (Other pressure standard, please indicate when ordering) |
|
Body material |
WCB (C), SS304 (P), SS316 (R) |
|
Sealing material |
PTFE (F), PPL (PPL), Metal hard (H), Hard alloy (Y) |
|
Medium temp. |
W2: -20~150℃ W3: -20~250℃ W4: -29~425℃ |
|
Connection mode |
Flange, Butt weld, Female thread |
|
Pneumatic actuator |
JLAT series, JLAW series, lmported actuator series |
|
Action mode |
Double acting, Single acting normally closed, Single acting normally open |
|
Electric actuator |
JLA series, JLB series, lmported actuator series |
|
Control mode |
Standard switch type, lntegral regulating type, Integral switch type, Field bus type |
High-Pressure 2-Ways Ball Valves
Application and model examples
Petrochemical: Control high-temperature and high-pressure oils and acids (such as Q41F-16P stainless steel ball valve); Energy and power: Steam pipelines and boiler systems (such as BKH series pneumatic high-pressure ball valves); Hydraulic system: Hydraulic oil circuit switching (such as KHB type high-pressure carbon steel ball valve); Special media: Corrosive gases (such as 316L stainless steel + carbide seal combination).
Selection and installation points
Selection recommendations: High-pressure scenarios: Prioritize fixed ball structure + carbide seal, suitable for frequent opening and closing and impact loads; Corrosive media: Select 316/316L stainless steel valve body, or nickel-plated surface; Flange standard: Match pipeline flange specifications (such as ASME B16.5, HG/T20592). Installation specifications:
The flange bolts must be tightened symmetrically to avoid deformation of the valve body and leakage;
The valve stem operating space (≥90°) must be reserved, and the pneumatic/electric actuator must be equipped with a limit switch.
