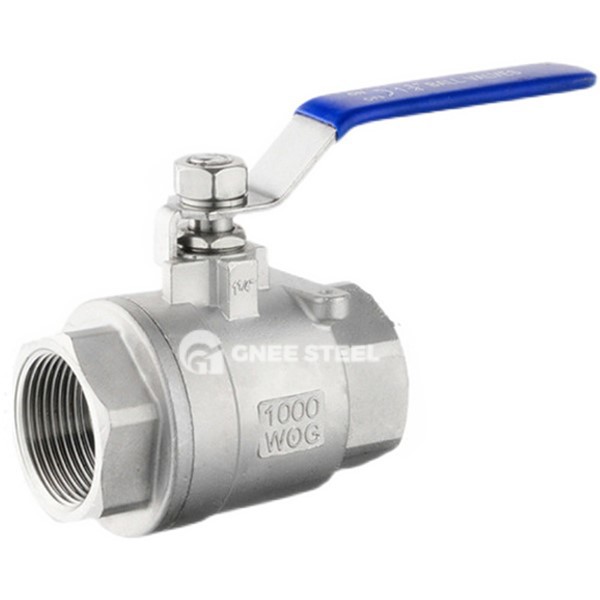

2 piece ball valve Description
Two-piece ball valve consists of a valve body (split type) and a valve cover, which are connected by bolts or threads and are suitable for medium and low pressure conditions of small and medium diameter pipelines (DN15-DN100).
Installation specifications:
Threaded connections require raw tape or sealant, and flange connections require alignment of bolt holes and symmetrical tightening;
Pipe impurities must be removed before installation to avoid scratching the sphere mirror (surface roughness Ra≤0.4μm).
Maintenance points:
Inject EP2 grease every quarter to reduce the valve stem rotation torque (recommended ≤50N·m);
Valve seat wear exceeds 0.5mm or the sealing surface is scratched and needs to be replaced.
2 piece ball valve Specification
Design and Manufacture: ASME B16.34
Face to face: factory's standard
Test and inspection: API 598
After test, empty the medium, dry the body, and cover the 2 sides of the valve
Norminal pressure: 4.0 Mpa
Strength test: 6.0 Mpa
Seal test: 4.4 Mpa
Air seal test: 0.4-0.7Mpa
Applicable temperature: -29℃--150℃
Applicable medium: water, gas, oil

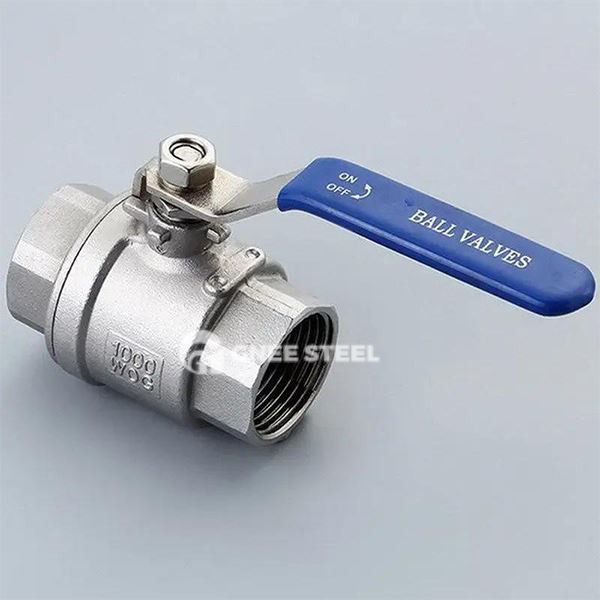

2 piece ball valve
Advantages
Economical: Simple structure, lower manufacturing cost than three-piece ball valve, suitable for small and medium-sized systems;
Corrosion resistance: 316L stainless steel + PTFE seal combination can withstand strong acid and alkali media with pH 0.5~14;
Convenient maintenance: Split valve body design supports quick disassembly and replacement of seals without special tools.
Applications
Chemical system: Cutting off and distribution of acid and alkali media (such as nitric acid and acetic acid pipelines);
Food and pharmaceutical: Sanitary fluid control (quick-install interface required);
Water treatment: Flow regulation and emergency cutoff of pipelines below DN50;
Petroleum and natural gas: Low-pressure oil and gas transmission system (below Class 150).
