Choosing between a butterfly valve and a ball valve is not simply a matter of price. The right choice depends on pipe size, pressure class, temperature, media, required leakage rate, pressure drop, operating frequency, and whether the valve is used for isolation or flow control.
As a general rule, butterfly valves become more attractive as pipe diameter increases, while ball valves are often preferred for high-pressure isolation, full-bore flow paths, and demanding shut-off applications.
The key is to select the valve based on the actual service conditions rather than the valve type alone.
1. What Is the Difference Between a Butterfly Valve and a Ball Valve?
Both valves use a quarter-turn, 90-degree operating movement, but their internal designs are very different.

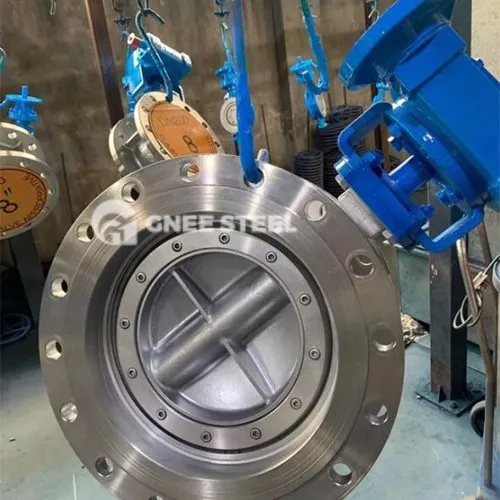

A butterfly valve uses a circular disc mounted on a shaft. Rotating the shaft moves the disc between the closed position and the open position. Even when fully open, the disc remains inside the flow passage.
A ball valve uses a spherical closure element with a drilled bore. In a full-bore ball valve, the bore is approximately the same diameter as the connected pipe, creating a relatively unobstructed flow path when the valve is fully open.
This basic difference affects almost every procurement decision: pressure drop, weight, cost, pigging capability, sealing, actuator torque and available sizes.
2. Butterfly Valve vs Ball Valve: Quick Comparison
| Selection Factor | Butterfly Valve | Ball Valve |
|---|---|---|
| Operating principle | 90° rotating disc | 90° rotating ball |
| Fully open flow path | Disc remains in the flow path | Full-bore option provides a nearly unobstructed path |
| Pressure drop | Generally higher than a full-bore ball valve | Generally lower for full-bore designs |
| Large-diameter cost | Usually lower | Usually higher |
| Weight | Lower | Higher, especially at large sizes |
| Installation footprint | Very compact | Usually longer and heavier |
| High-pressure service | Depends strongly on design | Strong option, including high-pressure designs |
| Tight shut-off | Available with resilient or metal seats | Excellent shut-off available, depending on design |
| Pigging | Generally not suitable | Full-bore designs can support pigging |
| Throttling | Possible with suitable designs | V-port/segmented designs are preferred for control |
| Typical applications | Water, HVAC, cooling water, utilities, wastewater | Oil & gas, chemical, process and high-pressure isolation |
| Common standards | API 609, EN 593, ASME B16.34 | API 6D, API 608, ASME B16.34 |
The exact performance depends on the valve design and rating. A resilient-seated concentric butterfly valve should not be compared with a high-performance triple-offset butterfly valve as if they were the same product.
3. Which Valve Is Cheaper?
For large pipe sizes, a butterfly valve is normally less expensive than a comparable ball valve.
The reason is straightforward: butterfly valves generally use less material, have fewer large precision-machined components and require less structural support.
The price difference becomes more noticeable as diameter increases.
However, avoid using a fixed statement such as "butterfly valves are always 50% cheaper." Actual pricing depends on:
Valve size
Pressure class
Body and trim material
Seat material
Valve design
End connection
Manual or actuated operation
Fire-safe requirements
Inspection and testing
Certification requirements
For B2B procurement, the better comparison is total installed cost, not just the valve quotation.
A lighter butterfly valve may also reduce:
Lifting requirements
Pipe-support loads
Installation labour
Actuator size
Shipping cost
That can make the total project saving larger than the difference in valve purchase price alone.
4. Which Valve Has Lower Pressure Drop?
In most like-for-like comparisons, a full-bore ball valve has lower flow resistance than a butterfly valve when both are fully open.
The reason is the flow path.
A full-bore ball valve provides a relatively straight passage through the valve. A butterfly valve always leaves the disc inside the flow path, so the fluid has to flow around it.
This does not mean that butterfly valves are unsuitable for flow-critical systems. It means that the pressure-drop requirement should be checked during valve selection.
For a procurement specification, ask the supplier for:
Cv or Kv data
Pressure-drop data
Flow rate
Fluid density
Operating temperature
Valve opening percentage
Do not select a valve based only on nominal pipe size.
5. Which Valve Is Better for Large-Diameter Piping?
For large-diameter, low-to-moderate pressure applications, a butterfly valve is often the more practical choice.
Typical applications include:
Municipal water
Cooling-water systems
HVAC
Water treatment
Wastewater
Fire-water systems
General utility piping
The main advantages are its low weight, short face-to-face dimension and lower cost.
For very large lines, these differences can become significant because a heavy ball valve may require more lifting equipment and stronger pipe supports.
That said, pressure rating and service requirements should be checked before using diameter alone as the selection rule.
6. When Is a Ball Valve the Better Choice?
A ball valve is usually the stronger option when the application requires one or more of the following:
High-pressure isolation
Ball valves are widely used for high-pressure liquid and gas isolation, including pipeline applications.
Full-bore flow
A full-bore ball valve provides a relatively unobstructed flow path, which is important when pressure loss must be minimized.
Pigging
If the pipeline requires pigging, a full-bore ball valve is normally a better choice because a butterfly disc obstructs the bore.
Frequent cycling
Quarter-turn operation makes ball valves suitable for applications requiring relatively fast opening and closing.
Tight shut-off
Soft-seated ball valves can provide very tight shut-off when properly selected and tested.
The required leakage rate should always be specified rather than simply asking for "zero leakage."
7. Can a Butterfly Valve Be Used for High Pressure?
Yes, but the specific butterfly valve design matters.
A conventional resilient-seated butterfly valve is commonly used in low-to-moderate pressure services. High-performance and triple-offset metal-seated butterfly valves can cover substantially higher pressure and temperature ranges.
For high-pressure or high-temperature service, check:
Pressure class
Pressure-temperature rating
Seat material
Disc and body material
Leakage requirement
Fire-test requirement
Flow direction
Operating torque
End connection
Applicable product standard
Do not assume that all butterfly valves have the same pressure capability.
For severe steam service, for example, a conventional soft-seated butterfly valve may not be suitable, while a properly rated metal-seated high-performance design may be.
8. Which Valve Is Better for Throttling?
This question needs a little care.
A butterfly valve can be used for throttling, particularly when the valve is specifically selected for control service and the expected flow characteristic and cavitation risk are acceptable.
A standard ball valve, on the other hand, is primarily an isolation valve. If accurate modulation is required, a V-port or segmented control ball valve is generally more appropriate than a standard full-port ball valve.
So the practical rule is:
For simple isolation, either valve may work. For continuous flow control, specify a valve designed and sized for control service rather than choosing a standard isolation valve simply because it is a quarter-turn valve.
For control applications, the supplier should provide Cv/Kv data and the expected operating range.
9. Sealing and Leakage: Which Is Better?
Neither valve type automatically wins in every application.
The achievable shut-off performance depends on:
Seat design
Seat material
Pressure
Temperature
Media
Valve geometry
Manufacturing tolerances
Required leakage rate
Resilient-seated butterfly valves can provide tight shut-off in many water and utility applications.
Metal-seated butterfly valves are used where higher temperature resistance or more demanding service is required.
Ball valves can also provide very tight shut-off, particularly with suitable soft-seat designs.
For procurement, specify the required seat leakage rate and test standard.
ISO 5208:2015 covers pressure testing of metallic valves and verification of closure tightness; the applicable product standard should also be considered.
10. What About Actuator Torque?
Both valves can be automated with pneumatic, electric or hydraulic actuators, depending on the application.
However, actuator sizing should never be based on a simple rule such as "butterfly valves need one-quarter the torque of ball valves."
Actual torque depends on:
Differential pressure
Seat friction
Valve orientation
Media
Temperature
Valve size
Seat material
Breakaway torque
Running torque
Closing torque
For a purchase order, request the manufacturer's torque data for the exact valve size, pressure class and seat configuration.
The actuator mounting interface is commonly standardized using ISO 5211 for part-turn actuators.
11. Butterfly Valve vs Ball Valve: Which One Should You Buy?
Use this simple selection approach.
Choose a butterfly valve when:
The pipeline is large diameter.
Weight and installation space matter.
The service is water, cooling water, HVAC or general utility.
The pressure and temperature are within the valve's rated range.
A small amount of additional pressure loss is acceptable.
A compact and economical design is important.
Choose a ball valve when:
High-pressure isolation is required.
A full-bore flow path is important.
Pipeline pigging is required.
Tight shut-off is a major requirement.
The pipeline handles demanding oil and gas service.
The application requires a suitable V-port or segmented design for flow control.
Valve Factory
Need a Valve Specified or Quoted?
Send your size, pressure class, media, temperature and quantity. GNEE's engineers will confirm the right valve type, seat material and actuator, and reply with a quotation and datasheet within 24 hours.
12. FAQ
Is a butterfly valve cheaper than a ball valve?
Usually, especially in large diameters. Butterfly valves generally use less material and are lighter and shorter. However, the actual price difference depends on size, pressure class, materials, seat design, actuation and inspection requirements.
Which has less pressure drop, a butterfly valve or a ball valve?
A full-bore ball valve normally has lower pressure loss when fully open because the flow path is relatively unobstructed. A butterfly valve has a disc inside the flow path.
Is a butterfly valve suitable for high pressure?
Some are. Conventional resilient-seated butterfly valves are generally intended for lower-pressure services, while high-performance and triple-offset metal-seated designs can be used at substantially higher pressures and temperatures. Always check the manufacturer's pressure-temperature rating.
Can a butterfly valve replace a ball valve?
Sometimes, but not universally. For large-diameter water or utility lines, a butterfly valve can be a cost-effective alternative. For piggable pipelines, demanding high-pressure isolation or applications requiring a full-bore passage, a ball valve may be the better choice.
Which valve is better for gas?
It depends on pressure, leakage requirements, temperature and valve design. Ball valves are widely used for high-pressure gas isolation. A butterfly valve may also be suitable in properly rated gas service when its leakage and pressure requirements are acceptable.
Which valve is better for throttling?
Neither standard isolation valve should automatically be treated as a control valve. For continuous modulation, use a butterfly valve designed for control service or a V-port/segmented ball valve and verify its Cv/Kv and operating range.
Are butterfly valves suitable for slurry?
Some are, but suitability depends on solids concentration, particle size, velocity, abrasiveness, seat material and disc design. Do not select a butterfly valve based only on the percentage of solids in the slurry.
What standards should I specify?
Common standards include API 609 for butterfly valves, API 6D for pipeline valves, API 608 for metal ball valves, ASME B16.34 for pressure-temperature and design requirements, ISO 5211 for actuator mounting, and ISO 5208/API 598 for applicable testing requirements.
13. Final Selection Rule
There is no universal winner between a butterfly valve and a ball valve.
For large-diameter, weight-sensitive and cost-sensitive utility piping, a butterfly valve is often the better commercial choice.
For high-pressure isolation, full-bore flow, pigging and demanding shut-off applications, a ball valve is often the safer specification.
Before placing an order, compare the complete duty - size, pressure, temperature, media, leakage requirement, pressure drop, operating frequency, actuation and applicable standards - rather than comparing valve types by price alone.
The best valve is not the cheapest valve. It is the valve that meets the process requirements without adding unnecessary purchase, installation or lifecycle cost.
References
API 609 - Butterfly Valves: Double-flanged, Lug- and Wafer-type
API 6D - Pipeline Valves
API 598 - Valve Inspection and Testing
ASME B16.34 - Valves - Flanged, Threaded and Welding End
ISO 5208:2015 - Industrial Valves - Pressure Testing of Metallic Valves
ISO 5211 - Industrial Valves - Part-turn Actuator Attachments
