Types of Relief Valves: Spring, Lever, Pilot and Safety Designs

Feb 20, 2025 Leave a message

The Function of a Pressure Relief Valve

A relief valve is the last line of defence for a pressure system. It is a self-actuating device that opens when the internal pressure reaches a set value and closes again once the pressure has fallen far enough, so that a vessel, pipeline or piece of equipment is never subjected to a pressure above its design limit. Unlike a control valve, it depends on no external power and no signal, and it acts whether or not the plant is attended.

Four terms govern the behaviour of any relief valve. Set pressure is the inlet pressure at which the valve begins to open under service conditions. Overpressure is the rise above set pressure needed to reach full lift and rated capacity. Blowdown or reseat pressure difference is the fall below set pressure at which the valve closes again. Accumulation is the maximum pressure reached during the discharge event, expressed as a percentage above the vessel design pressure. The allowable values for these quantities are set out in ASME Boiler and Pressure Vessel Code Section VIII Division 1 for vessels, and sizing and installation rules appear in API 520 Part I and Part II. Flanged steel pressure relief valves are dimensioned to API 526 and their seat tightness is verified to API 527.

Spring Loaded Relief Valves

In a direct acting spring loaded relief valve the disc is held on its seat by a compressed coil spring, and the spring force is adjusted by a set screw to define the set pressure. When the system pressure acting on the disc area exceeds the spring force, the disc lifts and discharges. The design is simple, self-contained and inexpensive, and it opens and closes automatically in step with the system pressure.

The spring is the component that sets the usable range. A single spring works over a limited pressure band, so the valve must be selected for the required set pressure rather than adjusted across the whole range. Spring loaded valves also react quickly to pressure changes, which suits thermal relief, small vessels and services where the discharge flow is modest.

Lever and Weight Loaded Relief Valves

In a lever and weight loaded design the closing force is provided by a weight acting through a lever rather than a spring. The set pressure is fixed by the position of the weight on the lever, and it is adjusted by moving the weight along its graduated arm. Because the force comes from gravity, these valves are used mainly in low pressure service, on tanks and on applications where the pressure setting is large enough to be set precisely by weight position and where the valve is not exposed to vibration that could shift the weight.

The advantage of the lever type is that the load is unaffected by temperature, so the set pressure does not drift with spring relaxation. The limitation is that the valve must remain level, and it responds more slowly than a spring loaded design.

Pilot Operated Relief Valves

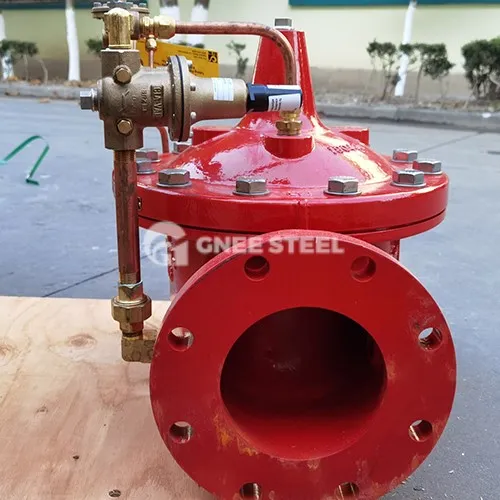

A pilot operated relief valve uses a small pilot valve to control a much larger main valve. The main valve is normally held closed by system pressure acting on top of a piston or diaphragm, and the pilot senses the inlet pressure and vents that closing chamber when the set pressure is reached. The main valve then opens fully and discharges at high capacity with a small pressure rise above the set point.

This architecture has several practical benefits. The set pressure can be much closer to the operating pressure because the pilot allows tight control of the reseat point, the capacity is large for a given inlet size, and the valve is less sensitive to back pressure in the discharge system. The trade-off is additional complexity: the pilot has small ports and fine clearances, so a clean, dry process fluid is important and the pilot must be included in any inspection programme.

Safety Valves and Safety Relief Valves

Terminology matters when ordering. A safety valve is normally a full lift valve intended for gas and vapour service, discharging to atmosphere. A relief valve is generally used on liquid service, where the valve opens progressively with the pressure rise. A safety relief valve combines both characteristics so it can be used on either fluid. Where the discharge must be contained and routed to a flare or recovery system, the valve must be selected for the superimposed back pressure of that system, and a balanced bellows or pilot operated construction is used where the built-up back pressure would otherwise alter the set point.

Whatever the type, selection starts from the relieving case, the required capacity in mass or volume terms per hour, the fluid state, the allowable accumulation and the inlet and outlet line sizes. Inlet piping should be short and generously sized so that pressure drop during discharge does not reduce the valve capacity and cause chatter.

FAQ

Q: What is the difference between a safety valve and a relief valve?
A safety valve is a full lift design for gas and vapour service, while a relief valve opens progressively and is normally used on liquids.

Q: What is blowdown on a relief valve?
It is the drop in pressure below the set pressure at which the valve reseats, expressed as a percentage or as a pressure difference, and it prevents the valve from chattering.

Q: When should a pilot operated valve be chosen over a spring loaded valve?
Where the capacity requirement is large, the operating pressure is close to the set pressure, or the discharge system imposes a significant back pressure.

Q: Can the set pressure of a spring loaded valve be changed on site?
The set pressure can be adjusted within the range of the fitted spring only; outside that range the spring must be replaced and the valve reset and tested.

Q: Which codes apply to pressure relief valve sizing and installation?
API 520 Part I for sizing, API 520 Part II for installation, API 526 for flanged steel valve dimensions and API 527 for seat tightness, with the vessel rules in ASME Section VIII Division 1.

Q: Why is the inlet line to a relief valve so important?
Excessive pressure drop in the inlet line during discharge reduces the force available to lift the disc, which cuts capacity and can cause rapid chattering and damage.
