The core difference between single-plate and double-plate check valves lies primarily in their structural design and fluid performance.
Single-plate check valves use a single, integral circular valve disc that rotates around a rocker arm shaft for opening and closing. While simple in structure, with fewer parts and easy maintenance, the valve disc has a large mass, requiring a higher medium flow rate for startup and exhibiting significant inertia upon closing, making it prone to water hammer.
Double-plate check valves, on the other hand, consist of two symmetrical semi-circular valve discs connected by a shaft. They can open and close independently or simultaneously. The double-disc structure allows for smoother and faster opening and closing, ensuring reliable opening even at low flow rates. Closing time is 30% shorter than single-plate valves, effectively reducing peak water hammer pressure. Furthermore, the independent sealing design of the two discs results in more even stress distribution and less wear. Combined with a hard alloy sealing surface and spring-assisted structure, this leads to a longer service life, meeting sealing requirements even after 500,000 opening and closing cycles.
Sourcing Wafer Check Valves? Get Factory-Direct Quotes for Single & Dual Plate Models Today.
Comparison Table: Single Plate vs. Dual Plate Check Valve
| Comparison Dimension | Single Plate Check Valve (Wafer) | Dual Plate Check Valve (Wafer) |
| Structural Design | Consists of a single circular disc that pivots eccentrically to open. | Consists of two semicircular plates hinged on a central pin. |
| Operating Principle | Media pressure pushes the single plate open; relies on gravity or backpressure to close. | Pressure pushes the plates open; usually spring-assisted for positive closure. |
| Flow Area | Large. Offers a nearly unobstructed flow path when fully open. | Slightly Smaller. The central pin and support post occupy some space in the flow path. |
| Flow Resistance | Low. Minimal pressure drop in the fully open position. | Moderate. Slightly higher than single plate, but superior to traditional lift check valves. |
| Water Hammer Control | Poor. The long travel and heavy disc often cause loud slamming and hydraulic shock. | Excellent. Spring-assisted rapid closure makes it a "Non-Slam" design, effectively suppressing water hammer. |
| Installation Orientation | Primarily Horizontal. Vertical installation is limited to upward flow only (often unstable). | Horizontal, Vertical, or Inclined. Spring-assisted closure makes it highly versatile. |
| Weight & Size | Lightweight with an ultra-short face-to-face (Wafer) dimension. | Extremely Light & Compact. Usually lighter than a single plate valve of the same size. |
| Applicable Sizes | Commonly used for DN50 - DN600 (2" to 24"). | Preferred for Large Bore applications (up to DN2000+ / 80"). |
| Sealing Performance | Medium. Relies on single-plate centering; prone to uneven wear under high pressure. | Good. Dual plates provide balanced force and more uniform contact with the seat. |
| Cracking Pressure | Lower. | Slightly higher (must overcome spring tension). |
| Complexity | Simple. Fewer parts, easy to maintain. | Higher. Contains springs, washers, and precision hinge components. |
| Cost / Price Point | Lower (for small to medium diameters). | Higher (due to precision springs and dual-plate machining). |

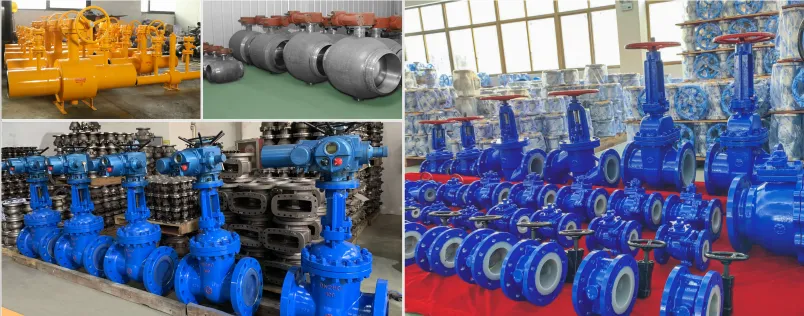

GNEE Check Valve factory
Confused About Valve Selection? Get a Free Technical Consultation & Quote in 24 Hours.
FAQ
What are the benefits of using a double check valve?
Double check valves play a crucial role in safeguarding water integrity in various applications. These valves are specifically designed to prevent backflow and contamination, ensuring that potable water remains uncontaminated. Their reliable operation is essential in maintaining clean water supply systems.
Where would you use a single check valve?
Altecnic single check valves are used to prevent the risk of backflow and back siphonage contamination in domestic dwellings, public and commercial buildings.
What is the lifespan of a double check valve?
It's typical to need a new rubber kit every five or so years, but the rest of the double-check valve assembly can last a very long time, potentially over 20 years, with the proper maintenance. But a backflow preventer can need early repair or replacement for various reasons, particularly bad water quality.
