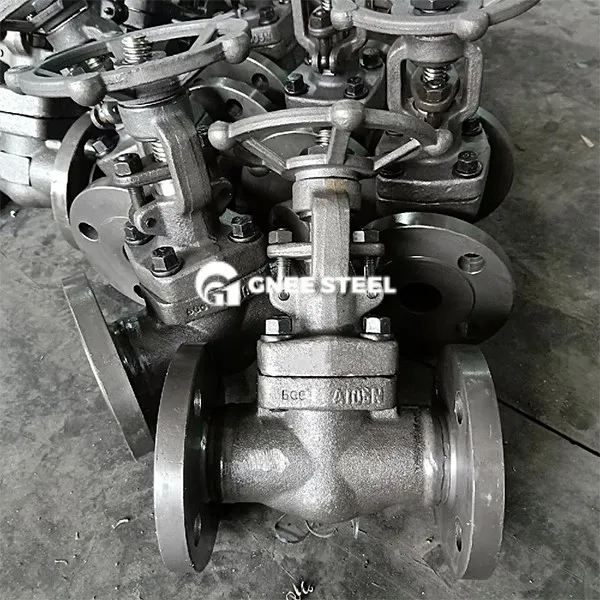

Forged Steel ANSI 300 Gate Valve Description
Pressure and material
Pressure level: Meets ANSI 300 standard (corresponding to nominal pressure of about 5.0 MPa), test pressure can reach 7.6 MPa, suitable for high temperature and high pressure conditions.
Valve body material: Made of forged steel (A105, WCB) or stainless steel (CF8/CF8M), applicable temperature range -29℃~425℃ (carbon steel) or -29℃~500℃ (stainless steel).
Diameter and connection
Diameter covers DN15~DN50 (NPS ½"~2"), supports flange connection (ANSI B16.5) and socket welding/threaded connection.
Structural and performance advantages
Core design
Bonnet type: Bolted bonnet (convex and concave seal), welded bonnet (thread + welding) and self-sealing bonnet (preferred for high-pressure conditions).
Seal components:
Hard seal: Stellite alloy cladding, resistant to particle-containing media (such as slurry, steam).
Soft seal: PTFE or flexible graphite, suitable for clean fluids (water, oil).
Performance characteristics
Low flow resistance: Full-diameter straight-through flow channel, pressure loss is only 1/3 of the same-caliber stop valve, suitable for large flow scenarios.
Long life: The valve stem is surface hardened/chrome-plated, and the wear resistance and corrosion resistance are significantly improved.
Easy to operate: The rising stem structure is matched with the trapezoidal threaded valve stem, the opening and closing torque is reduced by 30%, and it supports manual/electric drive.
Forged Steel ANSI 300 Gate Valve specification
|
item
|
valve
|
|
Application
|
oil and gas,oil and gas industry,petrochemical, chemical processing, pharmaceuticals, food and beverage, water treatment, and more.
|
|
Port Size
|
DN50~DN1500mm
|
|
Warranty
|
24 months
|
|
Place of Origin
|
Henan, China
|
|
Power
|
Electric
|
|
Temperature of Media
|
Normal Temperature,high temperature,low temperature
|
|
Brand Name
|
GNEE
|
|
Structure
|
Gate
|
|
Media
|
oil and gas,steam,water.chemical etc.
|
|
Customized support
|
OEM, ODM, OBM
|
|
Body material
|
Forged carbon steel, forged CF8/CF8m stainless steel
|
|
Ball Material
|
Forged carbon steel, forged CF8/CF8m stainless steel
|
|
Stem Material
|
forged Stainless steel,etc.
|
|
Seat Material
|
PTFE or metal seal with stellite, tungsten carbide
|
|
End Connection
|
Flange, welded, Socket weld and threaded
|
|
Design Standard
|
API 6D, API 608, API 607, ASME B16.34, ASME B16.25
|
|
Certifications
|
API 6D, API 607, API 598, ANSI/ASME B16.34, CE,JIS,DIN,BS
|
|
MOQ
|
1 unit
|
Forged Steel ANSI 300 Gate Valve
