The working principle of forged steel ball valve is to open or close the valve by rotating the valve stem. It is usually a full-bore ball valve with a 90-degree angle switch. It is light, small in size, can be made into a large diameter, has reliable sealing, simple structure, and convenient maintenance. The sealing surface and the spherical surface are often in a closed state and are not easily eroded by the medium. It is widely used in various industries. Forged steel ball valve classification: low-pressure forged steel ball valve, high-pressure forged steel ball valve.
API Forged Steel Ball Valve Specification
Construction – Floating/Trunnion Mounted Ball
Body Material – Forged Stainless Steel and Carbon Steel
Seat – Soft or Metal to Metal
Size Range – DN15-DN600
End Connection – Flange, SW, BW, Threads
Pressure Rating – Class 150-2500, PN16-420 or Equal
Standard – Design to ASME B16.34, DIN3202, API 6D, Flange Dimension to ASME B16.5, EN 1092-1, Socket Welding to ASME B16.11, Butt Welding to ASME B16.9, Face-to-face meets ASME B16.10, EN558, Inspection and testing according to API598, EN 12266-1, API 6D
Temperature Range – -20°F – 302°F (PTFE) and -50°F to +500°F(Metal seats)

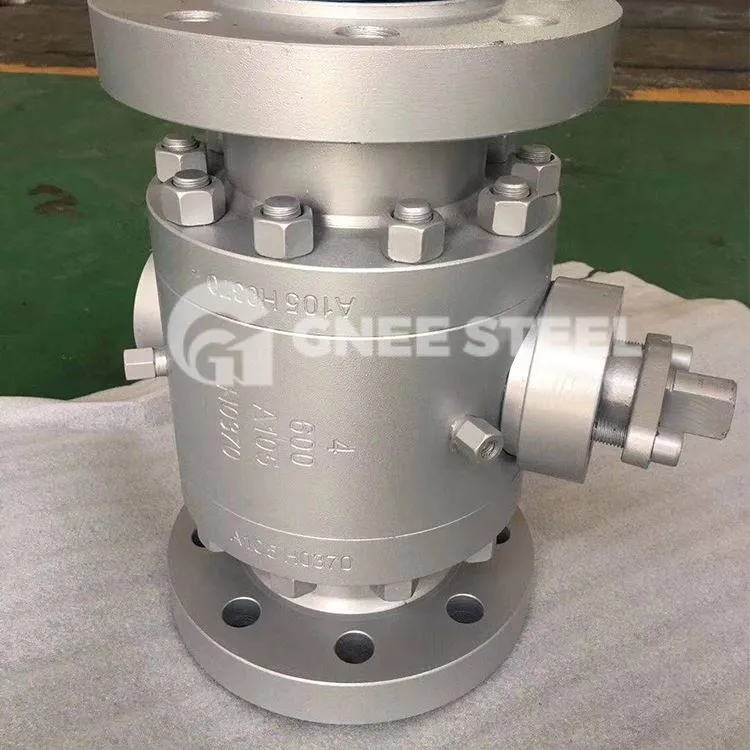

forging ball valve
Main performance specifications
|
test pressure(Mpa) |
Nominal pressure(Mpa) |
Pressure level(Class) |
|||||||||||
|
1.6 |
2.5 |
4.0 |
6.4 |
10.0 |
16.0 |
25.0 |
150 |
300 |
400 |
600 |
900 |
1500 |
|
| Strength test |
2.4 |
3.8 |
6.0 |
9.6 |
15.0 |
24 |
37.5 |
3.1 |
7.8 |
10.2 |
15.3 |
23.1 |
38.4 |
| Sealing test |
1.8 |
2.8 |
4.4 |
7.0 |
11.0 |
17.6 |
27.5 |
2.2 |
5.6 |
7.5 |
11.2 |
16.8 |
28.1 |
| Airtight test |
0.5-0.7 |
||||||||||||
| Operating temperature |
PTEE≤150℃ PPL E≤300℃ Carbon Fiber≤350℃ |
||||||||||||
| Applicable media |
C：Water, oil, steam P：Nitric Acid(temperature≤200℃ ) R：Acetic acid(temperature≤200℃ ) |
||||||||||||
