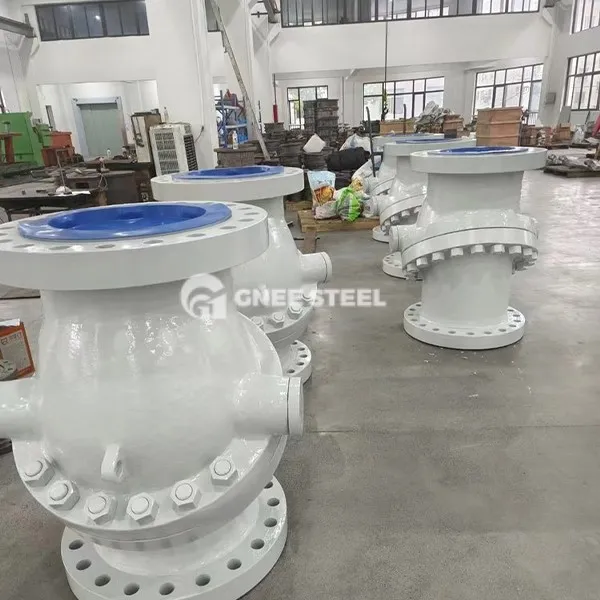

Tilting disc check valves are critical components in fluid systems, widely used in industrial and civil applications. Their functionality stems from fluid dynamics and mechanical synergy:
Working Principle
Forward Flow:
Fluid pressure tilts the disc around a pivot, creating a low-resistance passage.
Opening degree adjusts dynamically with flow velocity/pressure.
Reverse Flow:
Disc snaps shut rapidly under backpressure, sealing against the seat (elastomeric materials ensure leak-proof performance).
Precision-engineered bearings prevent jamming during cyclical operation.
Key Features
Superior Backflow Prevention:
Seals withstand high reverse pressures (e.g., 10+ years in chemical/oil pipelines).
Minimal Flow Restriction:
30% lower pressure drop vs. swing-type valves, reducing energy consumption.
Compact Design:
Ideal for space-constrained installations (e.g., retrofitting projects).
Wear Resistance:
Rotational motion minimizes friction; tungsten-carbide coatings extend lifespan.
Versatile Compatibility:
Handles gases/liquids/corrosive media (selectable materials: SS316L, PTFE-lined).
