ANSI cast steel gate valves are control components in fluid transport systems, providing functions such as shut-off, regulation, flow diversion, backflow prevention, pressure stabilization, flow splitting, and pressure relief. Valves used in fluid control systems range from the simplest ANSI gate valves to various ANSI valves used in highly complex automated systems, with a wide variety of types and specifications. Valves can be used to control the flow of various types of fluids, including air, water, steam, various corrosive media, slurry, oil, liquid metals, and radioactive media.
GNEE Group is a global one-stop supplier of valves. B2B Valve Solutions – Submit Your Requirements!
ANSI cast steel gate valves Technical parameters
Size Range: DN15-DN900
Material: Carbon Steel, Stainless Steel, Cast Iron
Connection Options: Flanged
Working Pressure: Class 150 to Class 2500
Working Temperature: -29°C to 425°C
Sealing Options: Metal-to-Metal, Resilient Seat, Graphite, PTFE
Manufacturing Method: Cast, Forged, Machined
Applicable Medium: Water, Oil, Gas, Steam, Chemical Fluids
Manufacturing Standard: API 600
ANSI cast steel gate valves Product specification
| Design | Structure Length | Connection Flange | Test and Inspection | Pressure and Temperature Reference |
|---|---|---|---|---|
| API 600 | ASME B16.10 | ASME B16.5 | API 598 | ASME B16.34 |
ANSI cast steel gate valves Main Components Material:
| Part Name | A216 WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
|---|---|---|---|---|---|---|
| Body | A216 WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Valve Cover | A216 WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Valve Plate | A216 WCB | A217 WC6 | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Sealing Face | 2Cr13 | STL | Body / STL | Body / STL | Body / STL | Body / STL |
| Stem | A182 F6a | A182 F11 | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Gasket | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite |
| Bolt | A193 B7 | A193 B7 | A193 B8 | A193 B8M | A193 B8M | A193 B8M |
| Nut | A194 2H | A194 6 | A194 8 | A194 8M | A194 8M | A194 8M |
| Applicable Temperature | –29 ~ 425 ℃ | –29 ~ 540 ℃ | –46 ~ 425 ℃ | –46 ~ 425 ℃ | –46 ~ 425 ℃ | –46 ~ 425 ℃ |
| Suitable Medium | Water, steam, oil products | Water, steam | Nitric acid and weakly corrosive media | Nitric acid and weakly corrosive media | Nitric acid and weakly corrosive media | Nitric acid and weakly corrosive media |
ANSI cast steel gate valves Features
1. The product design and manufacturing meet international standards, ensuring reliable sealing and excellent performance.
2. The structure is compact and reasonable, with an attractive appearance.
3. It adopts a wedge-type elastic gate structure, with rolling bearings for medium and large diameters, allowing for easy opening and closing.
4. A complete range of valve body materials are available, and packings and gaskets are rationally selected according to actual working conditions or user requirements, making it suitable for various pressure, temperature, and media conditions.
ANSI cast steel gate valves Applications
Oil & Gas Industry: Controlling high-temperature, high-pressure oil and gas pipelines to ensure safe and efficient operation.
Chemical Industry: Transmitting high-temperature corrosive media to ensure continuous production.
Power Industry: Regulating the flow of media such as steam and water to maintain stable operation of power generation equipment.
Other Fields: Metallurgy, shipbuilding, food and beverage, machinery manufacturing, etc., for controlling media such as hydraulic oil and lubricating oil.
ANSI cast steel gate valves Maintenance and Care
Regular Inspection: Check sealing performance, operational flexibility, and component integrity; replace worn parts promptly.
Cleaning and Lubrication: Clean internal valve body contaminants and apply lubricant to bearings, sealing surfaces, and other components.
Safe Operation: Follow operating procedures; avoid disassembly under pressure or misoperation that could lead to accidents.
Troubleshooting: If leakage or jamming is detected, contact professional repair personnel to avoid self-disassembly and further damage.

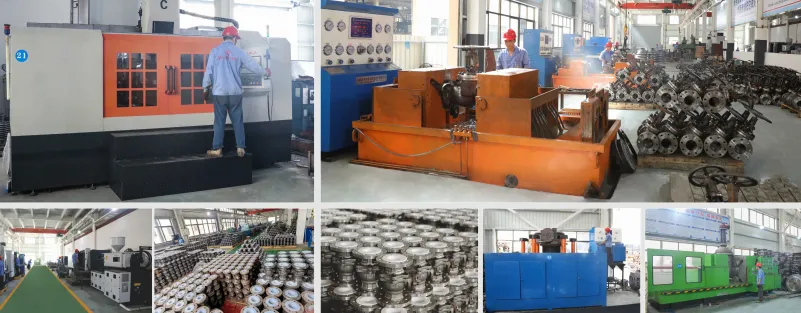

ANSI cast steel gate valves factory
