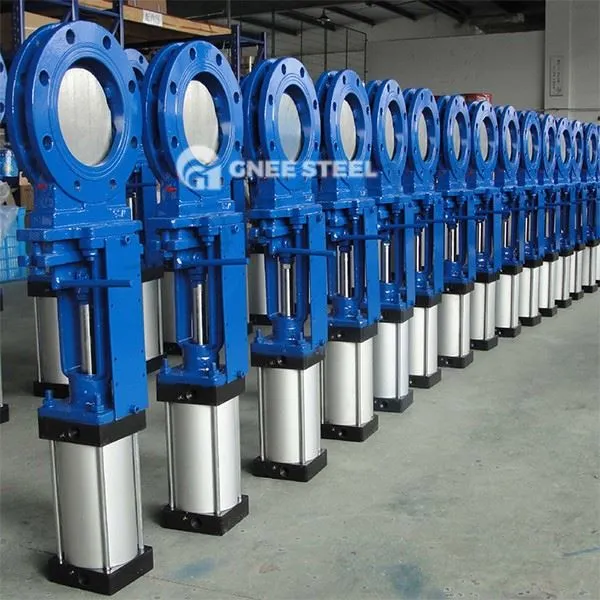

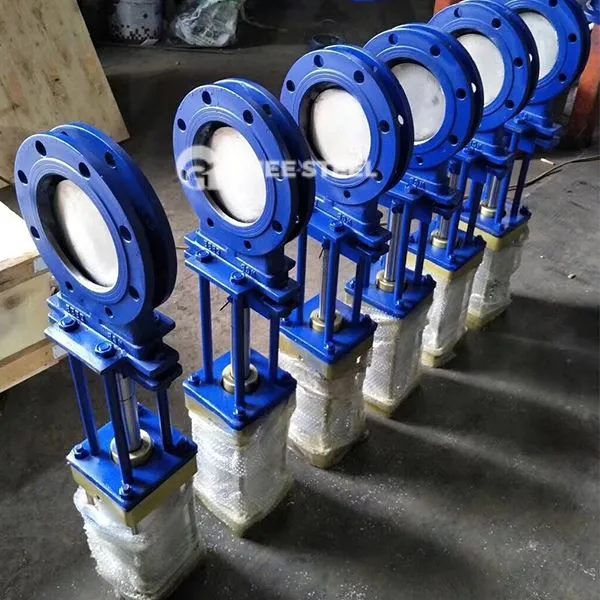

Pneumatic Actuated Knife Gate Valves

Pneumatic knife gate valve is a valve driven by compressed air. Its opening and closing parts are wedge-shaped or knife-shaped gates. The gate movement direction is perpendicular to the fluid flow direction. It is usually used in fully open or fully closed fluid control scenarios.

Structural composition

Core components

Pneumatic actuator: located in the upper part of the valve, it drives the piston movement through compressed air to drive the valve stem to rise or fall or rotate.

Gate: divided into rigid integral gate or elastic wedge gate (can be slightly deformed to adapt to the sealing surface deviation), the sealing surface is often designed with a 50° wedge angle to enhance the sealing performance.

Valve body and sealing surface: the valve body is mostly made of cast iron, stainless steel or alloy steel, and the sealing surface adopts carbide surfacing or spraying process to improve wear resistance.

Valve stem: the surface is hardened (such as hard chrome plating), supports lifting or rotating movement, and some models are equipped with anti-blowout design.
‌
Auxiliary components‌
Solenoid valve (for double-acting models), spring (reset device for single-acting models), packing gland, sealing gasket, etc.‌

Working principle‌
‌Single-acting type‌: When there is no air source, the spring pushes the piston to close the valve (normally closed) or open the valve (normally open); after the compressed air is introduced, the piston overcomes the spring force and moves in the opposite direction‌. ‌Double-acting type‌: The air source direction is switched by a two-position five-way solenoid valve, and the compressed air alternately enters the two ends of the cylinder to drive the piston to move in both directions to realize the opening and closing of the valve‌.



Pneumatic Knife Gate Valves



Features
‌Sealing Performance‌
The self-sealing design is adopted, and the gate is pressed against the valve seat by the medium pressure, with a high sealing level.
‌Corrosion Resistance‌
The valve body and sealing surface materials can withstand slurry, fiber or corrosive media.
‌Compact Structure‌
The knife-shaped gate design is suitable for medium containing particles or viscous media, with small flow resistance and not easy to clog.
‌Automation Control‌
Supports remote control, can be integrated into the automation system, and has a fast response speed.

Applications

• ‌Chemical/Environmental Protection‌: Pipeline systems that handle particles, slurries or corrosive media.
• ‌Metallurgy/Mining‌: Transportation control of slurry, mud or high-viscosity fluids.
• ‌Sewage Treatment‌: Cut off fibers and solid impurities in sewage.
• ‌Food/Pharmaceuticals‌: Sanitary valves are used for high-cleanliness fluid management (special material certification required)
