vertical lift check valve Description
Vertical lift check valve is an automatic valve specially designed for vertical pipelines. It controls the one-way flow of medium by lifting the valve disc along the vertical centerline of the valve body to prevent backflow. Its core function is to open and close by relying on the pressure of the medium itself or the weight of the valve disc, without external power.
Performance parameters
Nominal pressure: PN1.6~42.0MPa (such as H42H type is suitable for PN16~PN420). Applicable temperature: -29℃~550℃, chromium-molybdenum steel or special alloy materials are required for high temperature conditions. Applicable media: water, steam, oil, corrosive liquids, etc. Production standards
Design specifications: in accordance with API 6D (pipeline valves), GB/T 12235 (steel stop valves and lift check valves) standards. Testing standards: Sealing test according to API 598 or GB/T 13927, leakage rate ≤0.01mL/min
vertical lift check valve specification
| Name | vertical lift check valve |
| Certificate | ISO9001: 2000,CE |
| Design standard | ANSI |
| Typology | Lift Type |
| Flow Direction | Unidirection/Full Port |
| Work pressure | 1000PSI(PN63) |
| Operating temperature | -20~250°C |
| Size | 1/4"-2" |
| Connection | Thread |
| Threaded standard | NPT /BSPT /BSP /DIN |
| Material | CF8(SS304),CF8M(SS316) |
| Suitable Medium | Water, Oil, Air and Some Corrosive Liquid etc |
| Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Usage | Regulation, Safety, Emptying, Drain, Temperature Control, Flow Control |
| Special Design | Available |
| Customized Size | Available |
| Warranty | 1 year |
| Package | cartons, pallet, cases |
| Production period | In 15-60 days upon order quantity |
| Payment term | LC, T/T, Western Union, Small-amount payment |
| Certificate | ISO14001,ISO9001,ASME,CCC,CE |

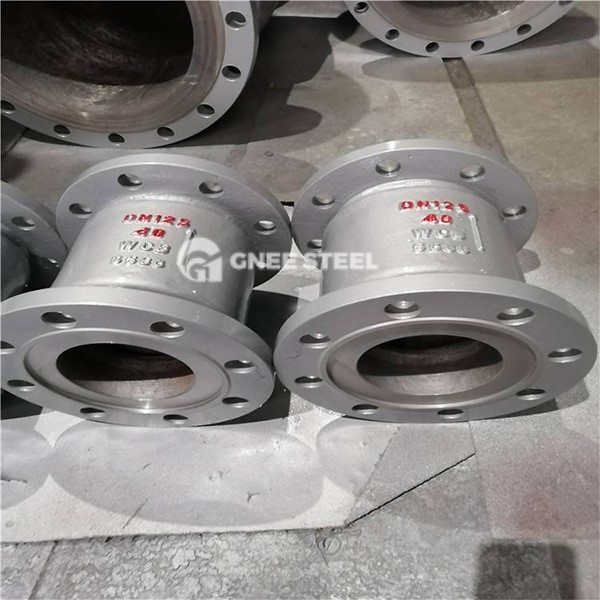

vertical lift check valve
Applications
Petrochemical industry
Vertical oil/gas pipelines, to prevent backflow of media and contamination of equipment, suitable for high pressure and high temperature conditions.
Power system
Steam pipelines and boiler water supply systems in thermal power plants, resistant to high temperature steam (≤425℃).
Municipal engineering
Vertical water supply networks and fire protection systems in high-rise buildings, to prevent water hammer impact when the water pump is shut down.
Industrial equipment
Unidirectional control of corrosive media in chemical reaction devices, the material can be stainless steel or fluorine-lined structure.
