Low Temperature Butterfly Valves Description
Cryogenic butterfly valve is a valve specially used for extremely low temperature media of -40℃~-196℃. The butterfly plate rotates 90° around the valve axis to open, close or adjust the pipeline fluid. It is widely used in liquefied natural gas (LNG), liquid oxygen, liquid nitrogen, air separation equipment and chemical tail gas treatment. Its core functions include:
Fast opening and closing: simple structure, flexible operation, suitable for rapid shut-off requirements in low temperature conditions.
Low flow resistance design: full-diameter structure reduces medium flow resistance, especially suitable for high-flow cryogenic fluids.
Low Temperature Butterfly Valves Specification
|
Application |
Industrial Usage, Water Industrial Usage, Household Usage |
|
Port Size |
DN10-DN2000 |
|
Warranty |
24 month |
|
Place of Origin |
China |
|
Henan |
|
|
Power |
Pneumatic,Electric,Manual,Hydraulic |
|
Temperature of Media |
High Temperature, Low Temperature, Medium Temperature, Normal Temperature |
|
Brand Name |
GNEE |
|
Structure |
BUTTERFLY |
|
Media |
Gas,Water,Oil,Acid |
|
Customized support |
OEM, ODM, OBM |
|
Disc Material |
Carbon Steel, Stainless Steel, Chrome Molybdenum S |
|
Seat Material |
NBR/EPDM/PTFE/Viton/Silicone etc |
|
Coating |
Customized |
|
End Standard |
Pn6/10/16/25/21/150lb/JIS5K/10K/As2129 Table D/E/F |
|
Body Material |
Carbon Steel, Stainless Steel, Chrome Molybdeum St |
|
Stem Material |
2Cr13, 1Cr13, Stainless Steel, Chrome Molybdenum S |
|
Color |
Customized on Request |
|
Seal Test Pressure |
0.66MPa-4.4MPa, 1.1MPa, 1.76MPa, 2.2MPa |
|
Shell Test Pressure |
0.9MPa-6.0MPa, 2.4MPa, 3.0MPa |
|
Transport Package |
Wooden Case |

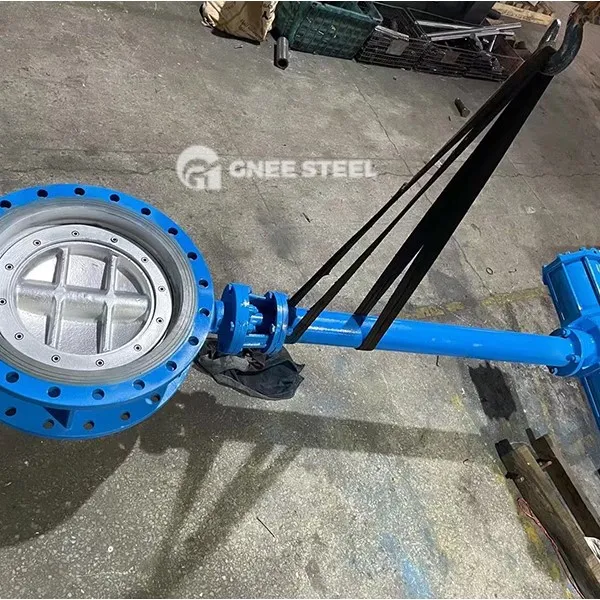

Low Temperature Butterfly Valves
Applications and typical scenarios
| Industrial | Applications | Compatible models/technologies |
|---|---|---|
| Energy and Chemical Industry | LNG storage tanks, liquid oxygen delivery systems, ethylene cracking units | Three eccentric metal hard seal butterfly valve |
| Air separation plant | Liquid nitrogen and liquid argon circulation pipeline | Long neck bonnet structure butterfly valve |
| Environmental protection and military industry | Aerospace fuel delivery, low temperature experimental equipment | Fully welded cryogenic butterfly valve |
