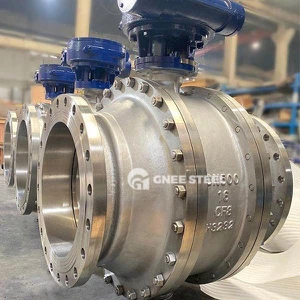

The stainless steel 316 trunnion-mounted ball valve features a fixed ball design with a two-piece or three-piece body. Upper and lower bearings reduce operating torque, and a reinforced PTFE seal and spring-loaded seat assembly provide bidirectional sealing. It supports manual, pneumatic, and electric actuation. Its built-in fireproof seal meets APl6FA/APl607 fire resistance standards and automatically relieves pressure under abnormal pressure. The full-bore construction facilitates pipeline cleaning, and a drain port is provided in the valve body for leak detection and media cleaning. It is suitable for high-pressure, large-diameter environments.
Specification
Size:14 inch
Pressure:900LB
Body/Bonnet:A105
Ball: F316
Stem: 17-4PH
Seat: DEVLON
Worm Gear Operation
Standards
Design and Manufacture: API 6D
Face To Face: ASME B16.10
Flanged Ends: ASME B16.5
Test And Inspection: API 598
Features
Reduced port or full port design
Two piece split body or three piece bolted body
With trunnion mounted ball
Blow-out proof stem, Anti-staic,
Optional locking device or stem extension,
Optional direct mounting to ISO 5211
