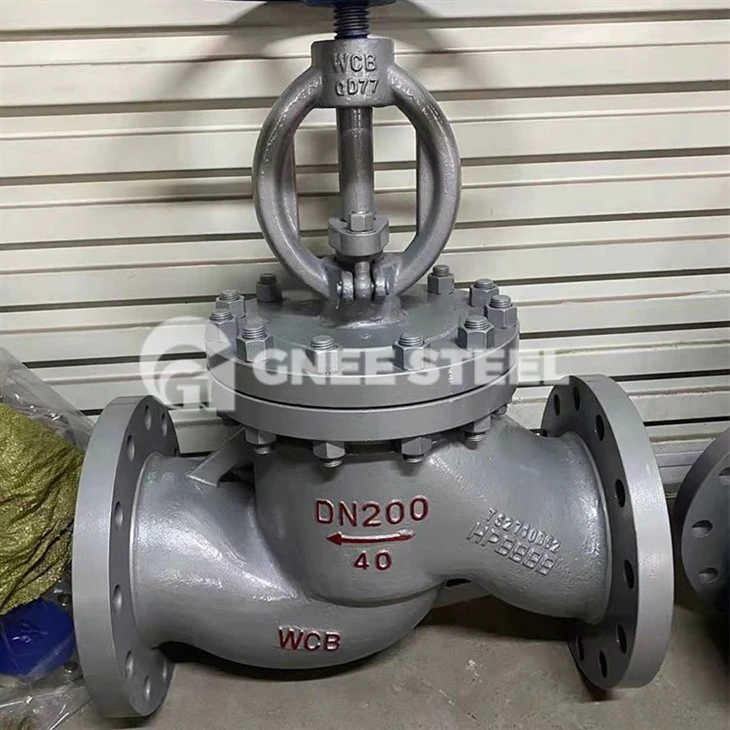

DIN Standard Cast Steel Globe Valve

DIN cast steel globe valve closing mechanism is called the disc or valve plug and can be machined into many different shapes. By changing the shape of the valve disc, the flow rate through the valve can vary greatly based on the number of turns of the valve stem when the valve is open. The more common or "traditional" curved disc design is used in most applications because it accommodates the given movement (rotation) of the valve stem better than other designs. V-port discs are designed for fine flow throttling through various opening percentages and are suitable for all sizes of globe valves. Needle types are designed for absolute flow regulation, but are usually only available in smaller sizes. When absolute closure is required, a soft elastic insert can be installed in the valve disc or seat.

Size Range: 1/2"-16"/DN15-DN400

Pressure: PN16/PN25/PN40

Body Materials: GG/GS-C25/SS304/SS316

Disc Materials: C.C+13Cr/SS304/SS316

Stem Materials: 13Cr/SS304/SS316

Lock Nut Materials: 25#/SS304/SS316

Payment: T/T, D/P or L/C

Lead Time：5-30 days

Cast Steel Globe Valve Material List

Cast Steel Globe Valve

• ‌Strict manufacturing standards and high reliability‌

Following the German Industrial Standard (DIN), covering the entire process of design, materials, and testing, ensuring that the dimensional accuracy and sealing performance meet the requirements of harsh working conditions;
The high-quality cast steel valve body (such as carbon steel, stainless steel) combined with the carbide sealing surface has both high strength and corrosion resistance, and can withstand high pressure (PN16-PN40), high temperature (up to 350°C) and acid and alkali media.

• ‌Excellent sealing performance‌

The valve disc and valve seat adopt metal hard seal or composite flexible seal design, the leakage rate is lower than the industry standard, and zero leakage can be maintained in long-term operation;
The bellows structure (some models) further improves the sealing reliability and is suitable for the safe cutoff of toxic, flammable and explosive media.

• ‌Durability and low maintenance‌

The casting process makes the valve structure compact, without weld stress concentration, the compressive strength is increased by more than 30%, and the service life is extended by 2-3 times compared with ordinary valves;
The precision-machined valve stem and guide structure reduce friction loss, and the maintenance cycle can reach more than 5 years.

• ‌Flexible adaptability‌

Provide a variety of calibers (15-300mm), connection methods (flange, thread) and pressure levels (PN1.6-PN16) to meet the needs of different pipeline systems;
Support manual, electric or pneumatic drive, adapt to automatic control systems.

• ‌Petrochemical Industry‌

‌Application scenarios‌: Crude oil pipelines, reactor media control, acid and alkali storage tank imports and exports;
‌Problem solving‌: Preventing safety accidents caused by leakage of corrosive media, and reducing the risk of pipeline blockage of high-viscosity fluids (such as heavy oil).

• ‌Energy and Power System‌

‌Application scenarios‌: Boiler feed water system of thermal power plants, cooling circuit of nuclear power plants, and gas pressure regulating stations;
‌Problem solving‌: High temperature and high pressure resistance (working temperature up to 350°C) ensures stable operation under extreme working conditions and avoids steam or high-temperature water backflow to damage equipment.

• ‌Pharmaceutical and Food Processing‌

‌Application scenarios‌: Aseptic production line fluid control, food-grade media (such as syrup, dairy products) transportation;
‌Problem solving‌: Mirror polished valve body (Ra≤0.8μm) and sanitary design meet GMP certification to prevent cross contamination.

• ‌Environmental protection and municipal engineering‌

‌Application scenarios‌: sludge discharge from sewage treatment plants, urban heating network regulation; ‌Problem solving‌: Full-bore flow channels reduce head loss, and anti-particle impurity wear design improves system efficiency.
