API 602 Y Globe Valve

API 602 Y-type globe valve is a forged steel valve that complies with the API 602 standard of the American Petroleum Institute. Its valve body is designed with a Y-shaped flow channel. The high-pressure medium is cut off or regulated by the linear motion of the valve disc. It is specially developed for harsh working conditions such as petrochemical and electric power.

‌Design Standard‌

Main specification: ‌API 602‌ (forged steel valve design and manufacturing);
Pressure-temperature grade: ‌ASME B16.34‌ (up to CLASS 2500LB/42MPa).
‌Structural requirements‌

Structural length: compact design, in accordance with ‌ASME B16.10‌;
Connection method: ‌Socket welding (ASME B16.11)‌ or ‌Butt welding (ASME B16.25)‌, DN≤50mm preferred to socket welding.
‌Material and Process‌

Body material: forged steel ‌A105 (carbon steel), ‌F304/F316L (stainless steel), ‌WC6/WC9 (chrome-molybdenum steel);

Sealing surface: ‌Stellite 6/21 cobalt-based alloy cladding, hardness ≥HRC 55;

Inspection standard: ‌API 598 VI level‌ zero leakage test (leakage rate ≤0.01ml/min).

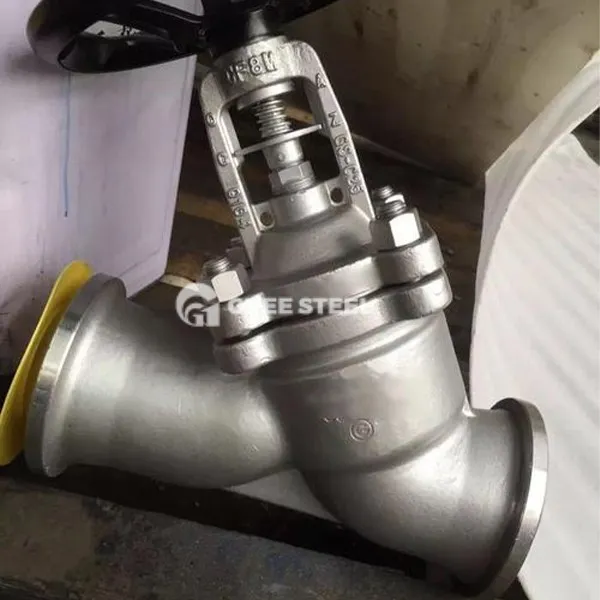

API 602 Y Globe Valve



Applications

Petrochemicals
Hydrogenation reactor inlet and outlet pipelines (CLASS 1500LB+); Ethylene high-pressure device (requires NACE MR0175 anti-sulfur certification).
Electric Power
Thermal Power Plant Main Steam Pipeline (540℃/25MPa); Boiler Feed Water System (Bellows Seal to Prevent Leakage).
Special Media Scenarios
LNG Cryogenic System (-196℃, Austenitic Stainless Steel Valve Body); High-purity Acid Delivery (PTFE-lined Valve Seat for Corrosion Resistance).
Nuclear Power and Industry
Nuclear Island Auxiliary Cooling System (All-metal Fireproof Structure); Metallurgical Blast Furnace Gas (Lined with Wear-resistant Alloy to Prevent Particle Erosion).
