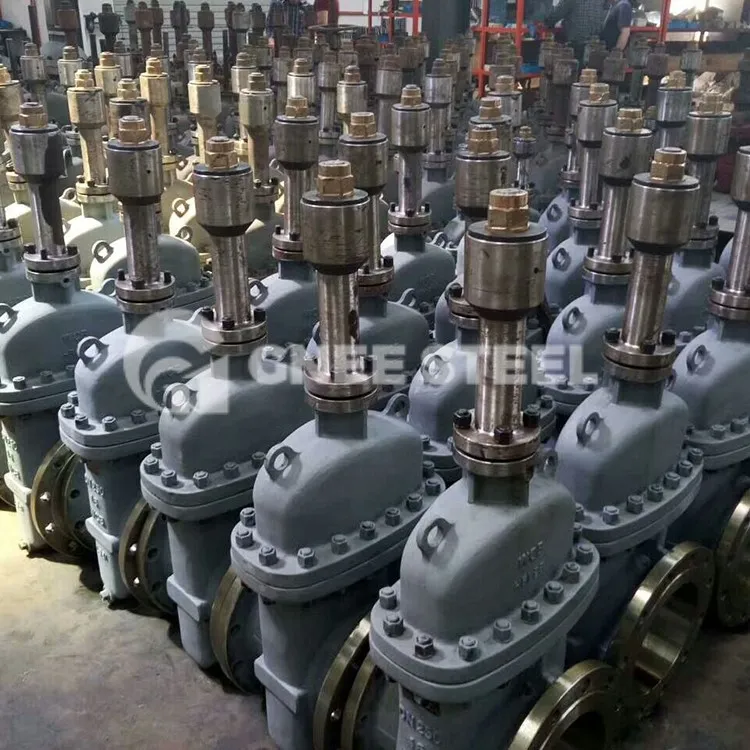

The gate of the sliding gate valve consists of one or two discs, which slide between two parallel valve seats. The valve is sealed by the pressure of the working medium, which presses the disc on the downstream side against the valve seat. This sealing process does not require an additional opening structure. When the valve is not under pressure, a small spring between the two discs ensures that the sealing surface fits properly.
parallel slide gate valve Specification
| Nominal size | 2"~48"(DN50~DN1200) |
| Nominal pressure | Class150~2500(PN10~PN420) |
| Standard: | EN 1984, GOST 5762, API600, API603, ASME B16.34, ASME B16.25 |
| Body material | Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel |
| End connection | RF, BW, RTJ, |
| Operation | Manual, Pneumatic, Electric, Hydraulic |
Dimensions (unit: Mm)
| Size | DN | A | B | Ø | L | H | PN | |||
| mm(inch) | DIN | ANSI | BS | (Mpa) | ||||||
| 40mm(1-1/4") | 32 | 143 | 115 | 40 | 42.16 | 42.16 | 68 | 57 | 0.35 | |
| 50mm(1-1/2") | 40 | 173 | 136 | 50 | 48.26 | 48.26 | 98 | 74 | 0.35 | |
| 63mm(2") | 50 | 206 | 163 | 63 | 60.32 | 60.32 | 108 | 86 | 0.35 | |
| 75mm(2-1/2") | 65 | 242 | 190 | 75 | 73.02 | 75.02 | 124 | 104 | 0.35 | |
| 90mm(3") | 80 | 312 | 222 | 90 | 88.9 | 88.9 | 128 | 150 | 0.35 | |
| 110mm(4") | 100 | 350 | 260 | 110 | 114.3 | 114.3 | 132 | 170 | 0.35 | |
| 160mm(6") | 150 | 510 | 380 | 160 | 168.28 | 168.28 | 172 | 242 | 0.35 | |
slide gate valve for powder
FAQ
Q: What is your product range?
A: We produce industrial valves such as butterfly valves, gate valves, check valves, ball valves, plug valves, and more.
Q: What standards do you follow?
A: We adhere to ISO, ANSI, DIN, JIS, EN, and GOST standards.
Q: What are your strong products?
A: Our strong products include centerline butterfly valves, eccentric butterfly valves, and resilient seat gate valves. We can produce these up to a maximum size of DN3200.
Q: How long is your delivery time?
A: If the product is in stock, delivery is generally within 10 days. If it is not in stock, it typically takes 35 days, depending on the quantity.
Q: Do you provide samples? Are they free or additional?
A: Yes, we can provide samples for free, but we do not cover the freight costs.
