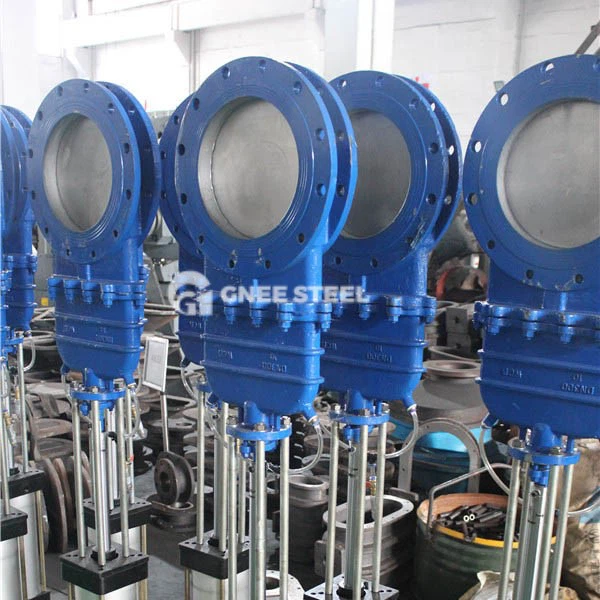

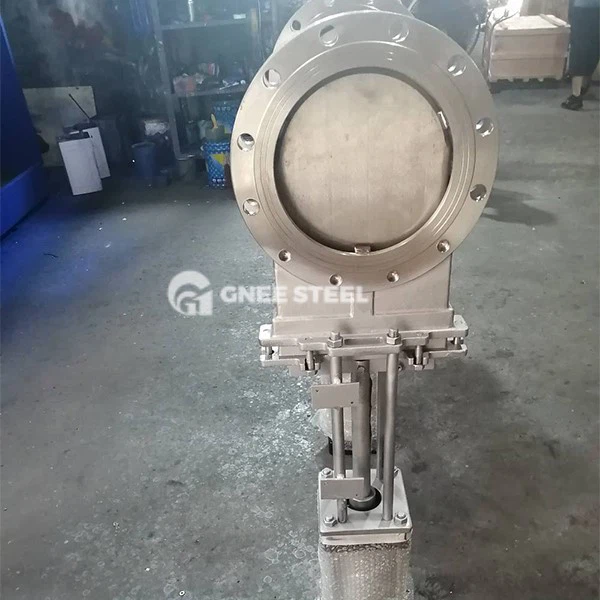

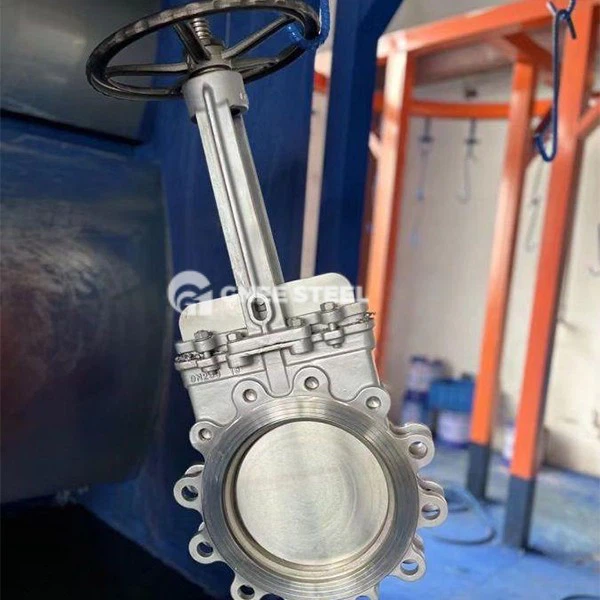

pneumatic gate valve Description
Pneumatic gate valve is a shut-off valve driven by compressed air. Its core function is to control the vertical lifting and lowering movement of the gate through the pneumatic actuator to achieve full opening or full closing control of the fluid medium.
Self-sealing and forced sealing:
Self-sealing: Relying on the medium pressure to press the gate against the valve seat to achieve sealing (suitable for low-pressure working conditions);
Forced sealing: The gate and the valve seat need to be forced to be pressed by an external driving force (such as a pneumatic actuator) (suitable for high-pressure or high-sealing requirements).
Pneumatic actuator:
The double-acting cylinder drives the piston to move through the air source pressure, driving the valve stem to open and close the gate;
Some models are equipped with a buffer mechanism to ensure smooth switching action and reduce impact.
Core structure and design
Main components:
Valve body and flange: The material is commonly 304/316 stainless steel or cast steel, the flange interface complies with GB/T 9113 standard, and the diameter range is DN15~DN800; Gate type: Parallel double gate or wedge gate, the double gate design can effectively cut off the medium containing particles (such as fly ash, sewage); Sealing system: Hard seal (metal to metal) is resistant to erosion, and soft seal (PTFE, rubber) achieves zero leakage. Drive system:
Double-acting pneumatic actuator: Adapt to high-frequency operation scenarios, support two-way air source control (intake valve opening, exhaust valve closing); Manual switching mechanism: It can be switched to manual operation in an emergency to ensure system safety.
pneumatic gate valve specification
|
Item |
value |
|
Warranty |
1 year |
|
Type |
Gate valve |
|
Customized support |
OEM, ODM |
|
Place of Origin |
China |
|
Henan |
|
|
Brand Name |
GNEE |
|
Application |
General |
|
Temperature of Media |
Medium Temperature |
|
Media |
Water |
|
Port Size |
DN15-200 |
|
Structure |
Gate |
|
Body material |
Stainless steel |
|
Connection |
Flange |
pneumatic gate valve
Applications
Energy and power: silo pump discharge valve and balance valve of fly ash conveying system in thermal power plants;
Chemical metallurgy: cutoff of corrosive media (nitric acid, pulp) or highly abrasive particle fluids (ore slurry, coal ash);
Municipal environmental protection: sewage treatment pipelines, water supply system start and stop control; Ship and marine engineering: anti-corrosion pipelines in seawater desalination systems
