Manual Knife Gate Valves

Manual knife gate valve (also known as manual knife gate valve or plug valve) is a valve that controls the flow of fluid by manual operation. Its opening and closing parts are knife-shaped or wedge-shaped gate plates, and the movement direction is perpendicular to the flow direction of the fluid. It is usually only used for full-open or full-closed fluid cutoff control.

Working principle
‌Opening and closing process‌:
When closing, turn the hand wheel to push the valve stem down, the gate moves down along the valve body guide rail, fits tightly with the valve seat, and cuts off the flow of the medium‌;
When opening, turn the hand wheel in the opposite direction, the gate moves up and leaves the valve seat, and the medium flow is restored‌.
‌Sealing mechanism‌:
Relying on the medium pressure to press the gate against the valve seat to form a self-seal, reducing the risk of leakage‌;
The elastic gate can automatically compensate for the deviation of the sealing surface and improve the sealing reliability‌.

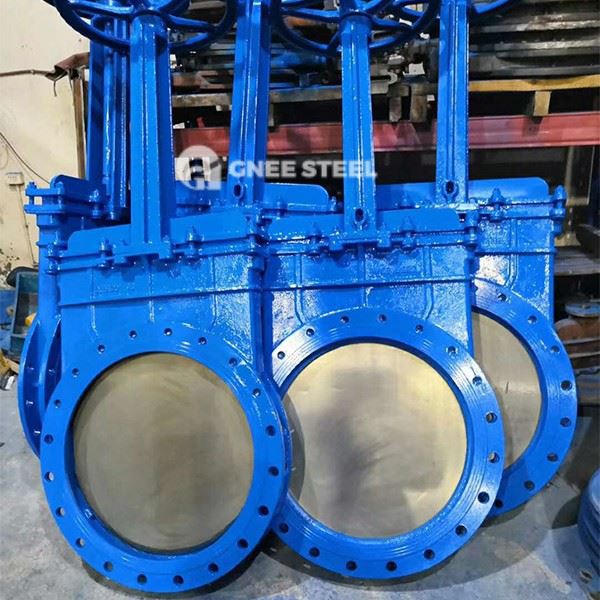

Manual Knife Gate Valves



Features
‌High sealing performance‌: The wedge-shaped sealing surface and elastic gate design make the sealing level reach the industrial standard, suitable for particle-containing or corrosive media‌.
‌Wear-resistant and corrosion-resistant‌: The valve body and gate are made of wear-resistant materials (such as hard alloy surfacing) to extend the service life‌.
‌Easy to operate‌: Manual drive does not require external energy and has low maintenance costs‌.
‌Low flow resistance design‌: The flow channel is straight when fully open, reducing the energy loss of medium flow‌.

Applications
‌Environmental protection and sewage treatment‌: Cut off sewage containing fibers and solid impurities to prevent pipe blockage‌.
‌Papermaking and food industry‌: Control high-viscosity fluids such as pulp and food slurry‌.
‌Mining and metallurgy‌: Transport slurry, mud and other particle-containing media‌.
‌Chemical industry‌: Corrosion-resistant materials are suitable for chemical media such as acids and alkalis‌.
