Jacketed butterfly valve Description
Jacketed butterfly valve is a butterfly valve that controls the medium temperature through an external jacket structure. A metal jacket layer is welded to the outer layer of the conventional butterfly valve body. By injecting heat media or cooling media such as steam and thermal oil, the internal fluid is prevented from solidifying or deteriorating due to changes in ambient temperature.
Core structure
Jacket design
Double-layer valve body: The outer layer is a metal jacket (carbon steel, stainless steel), which wraps the inner valve body to form an insulation cavity;
Jacket interface: Steam/cooling medium inlet and outlet are set on both sides of the valve body, which can be connected to an external heat source or cold source.
Sealing and drive
Sealing form: three-eccentric metal hard seal (high temperature resistance ≤600℃) or PTFE soft seal (corrosive medium);
Transmission mode: supports manual, electric or pneumatic actuators.
Jacketed butterfly valve specification
|
DN |
DN40~400mm (For other DN, please indicate when ordering) |
|
Nominal Pressure |
1.0-4.0Mpa (For other pressure standard, please indicate when ordering) |
|
Body material |
WCB (C), SS304 (P), SS316 (R) |
|
Seal material |
PTFE (F), Metal hard seal (H) |
|
Medium temp. |
W2:-20~150℃, W4:-29~425℃ |
|
Connection mode |
Flange, Wafer |
|
Pneumatic actuator |
JLAT series, JLAW series, lmported actuator series |
|
Action mode |
Double acting, Single acting normally closed, Single acting normally open |
|
Electric actuator |
JLA series, JLB series, Imported actuator series |
|
Control mode |
Standard switch type, Integral regulating type, Integral switch type, Field bus type |

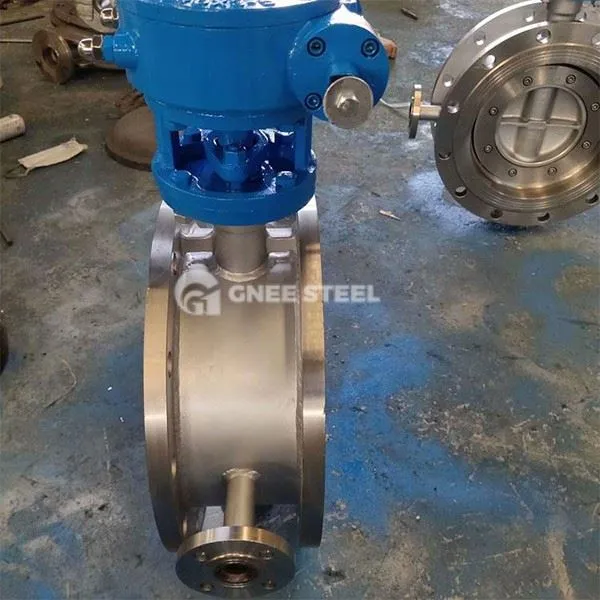

Jacketed butterfly valve
Applications
Chemical Industry
Transport of high viscosity fluids (asphalt, resin) to prevent solidification and clogging of pipelines;
Temperature stability control of corrosive media (acids, alkalis).
Energy and Metallurgy
High temperature flue gas waste heat recovery system to avoid heat loss;
Liquid metal (such as molten aluminum) pipeline cutoff and regulation.
Food and Medicine
Material pipelines that require constant temperature treatment (such as chocolate, pharmaceutical raw materials).
