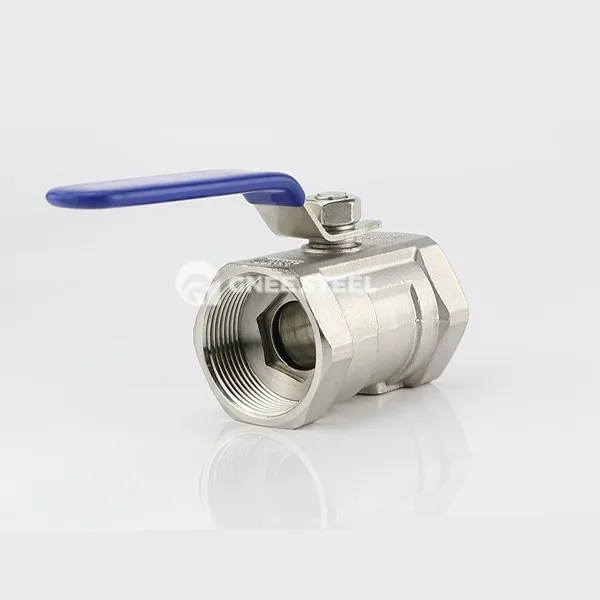

screwed ball valve Description
Screwed ball valve is a rotary valve with a ball as the opening and closing part. It can cut off or circulate the pipeline medium by rotating 90°. The connection method with the pipeline is threaded (internal thread or external thread). The core components include valve body, ball, valve seat and sealing materials (such as polytetrafluoroethylene). Some high-pressure models use ceramic materials to improve wear resistance.
Classification and type
By connection method Internal thread ball valve: The valve body has threads inside, which is suitable for small-diameter low-pressure pipelines. External thread ball valve: The valve body has external threads at both ends, which is easy to install and has reliable sealing. By functional structure Three-way threaded ball valve: It has three channels for medium diversion, confluence or flow direction switching, which is commonly used in laboratories or complex pipeline systems. High-pressure internal thread ball valve: The working pressure can reach 80MPa, and it has automatic pressure relief function, which is suitable for high-pressure scenes such as chemical industry, oil and gas extraction
screwed ball valve specification
|
Size |
1/4'' ～ 4'' |
|
Material we can do |
304 304L 316 316L CF8 CF8M CF3 CF3M |
|
Material in stock |
ASTM A351 CF8(304), ASTM A351M CF8M(316) |
|
Thread |
BS21 (BSPT&BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999(R/RP), JIS B 0203/2(PT), KS B0221/2(PT), ISO228-1, ISO7-1,etc.. |
|
Design standard |
API 608 |
|
Inspection standard |
API 598, En12266 |
|
Testing |
100% Leakage Testing |
|
Rating |
1000PSI |
|
Temperature |
-20°C to +150°C |
|
Power |
Manual Operated, Locking Handle Acceptable. |
|
Handle Sleeve color |
Blue, Yellow, Red for selection |
|
Surface |
Pickling and Peeling |
|
Model |
Ball Valve |
|
Connection |
Female Thread |
|
Shape |
Equal |
|
Application |
Suitable for Air, Natural Gas, Oil, Steam, Water and so on. |
|
Delivery Details |
According to the quantities and specifications of each order |
|
A complete stock to provide fast deliveries for small orders. |
|
|
Normal delivery times is from 30 to 50 days after receiving the deposit |
|
|
Sample |
Offer free samples and freight collected. |
|
OEM and ODM |
Accepted and professional. Buyer's drawing or designs are available |
|
Material test report |
is available upon request when placing order. |

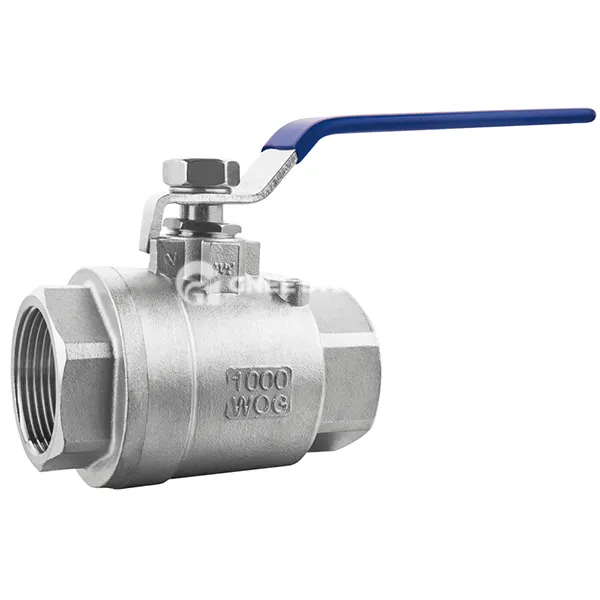

screwed ball valve
Features
Performance advantages:
Compact structure, light weight, flexible operation and fast opening and closing;
Good sealing, using polytetrafluoroethylene or ceramic materials, suitable for vacuum and corrosive media;
High-pressure models support automatic pressure relief, and the valve seat is separated from the ball under abnormal pressure to ensure safety.
Special design:
Ceramic ball valves have excellent wear resistance and are suitable for high-wear conditions;
External threaded ball valves have precise thread design, firm connection and support a variety of specifications (such as 2 points, 3 points, etc.).
Applications
Industrial scenarios: Chemical, petroleum, and natural gas pipeline systems, used for medium cutoff or flow control; People's livelihood areas: Household water supply, laboratory fluid distribution, scenarios that require fast opening and closing or flow regulation; Special industries: Electricity (cooling water system), food and medicine (sanitary medium control).
