Pneumatic floating ball valve means that the ball of the pneumatic ball valve is floating, under the action of medium pressure, the ball can produce a certain displacement and tightly pressed on the sealing surface of the outlet end to ensure that the outlet end seal.

Floating pneumatic ball valve structure is simple, good sealing, but the ball to withstand the load of the working medium all transferred to the outlet seal, so we should consider whether the seal material can withstand the ball media work load. This structure, widely used in low and medium pressure ball valves.

Pneumatic Floating Ball Valve Specification

Material	SS304, SS316, SS316L
Design	DIN
Stem	Stainless steel
Body	SS304, SS316, SS316
End Connection	Flanged
Bonnet	Ductile lron or Cast lron
Face to face	DIN3202
Pressure	PN16
Sealing Material	PTFE
Applicable Media	Control of Water, Air, Gas, Oil, Liquid
Size	1/2"-8"
Operation	Hand wheel, gear box, electric actuator
Color	Blue, red, black, etc

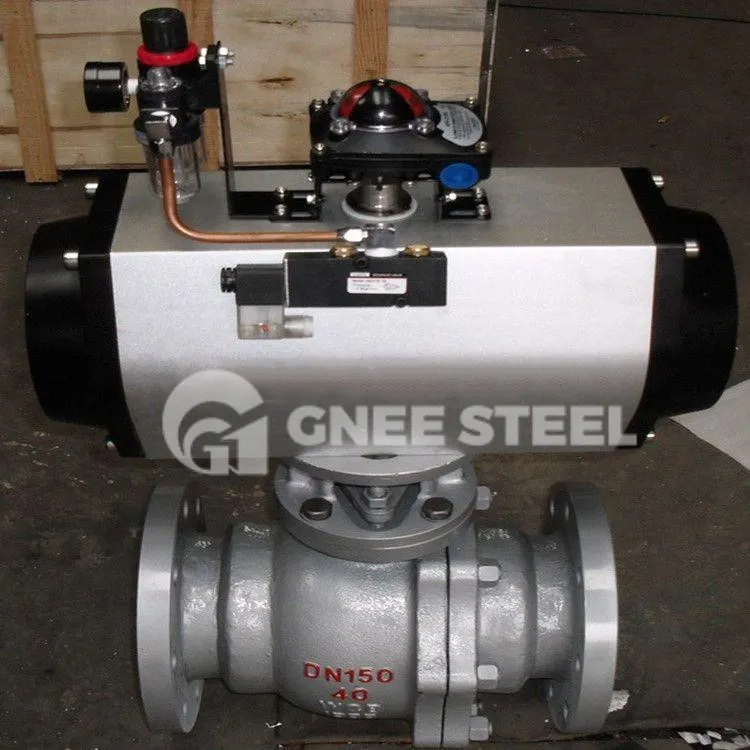

Pneumatic Ball Valve

Product Features:

Compact structure: compared with traditional valves, pneumatic ball valves have a more compact structure, which is very convenient for installation and maintenance.

Fast response speed: the use of pneumatic drive technology, so that the valve switching speed of 3-5 seconds can be accepted for customization, and can achieve real-time adjustment.

Strong corrosion resistance: It has strong corrosion resistance and is suitable for working in various harsh environments.

Long service life: After precision processing and strict quality control, the product has high reliability and durability, with a service life of several years.

Energy saving and environmental protection: through precise flow control, it can effectively reduce energy waste and lower production costs.
