Low Temperature Ball Valves Description
Cryogenic ball valve is a valve specially designed for ultra-low temperature environment of -40℃ to -196℃. It realizes the opening and closing and flow control of the medium by rotating the ball. It is suitable for the delivery system of easily gasified low-temperature medium such as liquefied natural gas (LNG), liquid oxygen, liquid nitrogen, etc.
Core structure
Valve body and ball:
Valve body material: stainless steel (316L), forged steel (WCB) or alloy steel, cryogenically treated to enhance low-temperature toughness.
Ball design: floating ball (small diameter) or fixed ball (large diameter/high pressure), with hard alloy plated on the surface to improve wear resistance.
Sealing system:
Soft seal: polytetrafluoroethylene (PTFE) or reinforced graphite seal ring, achieving zero leakage at -196℃ (ANSI VI grade).
Hard seal: metal-to-metal seal (such as chrome-molybdenum steel + tungsten carbide), resistant to high pressure difference and particle erosion.
Pressure relief and anti-gasification design:
Spring preloaded valve seat: The spring force is used to keep the sealing surface in close contact, preventing the medium from gasifying and expanding and causing a sudden increase in the pressure in the valve cavity.
Valve cavity pressure relief hole: The ball is drilled to connect the valve cavity with the upstream pipeline to prevent the low-temperature medium from gasifying and causing safety hazards.
Low Temperature Ball Valves specification
|
Application
|
oil and gas
|
|
Port Size
|
DN10-DN2000
|
|
Warranty
|
24 months
|
|
Place of Origin
|
Henan, China
|
|
Model Number
|
WBV-18
|
|
Power
|
Electric,Pneumatic,Manual,Hydraulic
|
|
Temperature of Media
|
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
|
|
Brand Name
|
GNEE
|
|
Structure
|
BALL
|
|
Media
|
gas,oil etc.
|
|
Customized support
|
OEM, ODM, OBM
|
|
Body material
|
WCB carbon steel, CF8/CF8m stainless steel or alloy steel
|
|
Ball Material
|
Stainless steel, alloy steel
|
|
Stem Material
|
Stainless steel
|
|
Seat Material
|
PTFE or metal seal with stellite, tungsten carbide
|
|
End Connection
|
Butt weld, socket weld
|
|
Design Standard
|
API 6D, API 608, API 607, ASME B16.34, ASME B16.25
|
|
Certifications
|
API 6D, API 607, API 598, ANSI/ASME B16.34, etc
|
|
MOQ
|
5 unit
|

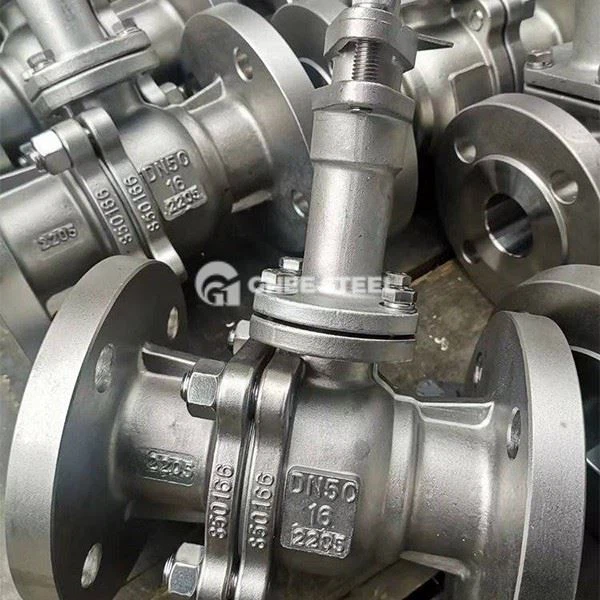

Low Temperature Ball Valves
Advantages
Ultra-low temperature adaptability:
The valve body and sealing materials have been specially treated to maintain stable performance at -196°C without the risk of brittle cracking.
High sealing reliability:
The double sealing structure (soft seal + hard seal) and spring preload design ensure zero leakage at extreme temperatures.
Corrosion resistance and high pressure resistance:
The forged steel valve body can withstand high pressure ≥PN10.0MPa, and the stainless steel material is resistant to corrosive media such as acid and alkali.
Low fluid resistance:
The full-diameter design reduces pressure drop and is suitable for large-flow low-temperature medium transportation.
