High-pressure top-mounted ball valves are valves in which the opening and closing parts (balls) are driven by the valve stem and rotate around the axis of the valve stem. High-pressure top-mounted ball valves are mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control, which hard seal V-ball valve V-ball spool and surfacing hard alloy metal valve seat has a strong shear force, especially suitable for containing fibers, tiny solid particles and other media. And multi-way ball valves in the pipeline not only can flexibly control the media merge, shunt, and flow direction switching, but also can close any channel and make the other two channels are connected. This type of valve should be installed horizontally in the pipeline.
Product Specification
| Nominal size | 2"~8"(DN25~DN200) |
| Nominal pressure | Class 150~Class 2500(PN10~PN420) |
| Standard: | ASME B16.34, API6D, ISO17292 |
| Body material | Carbon steel, Stainless steel, Alloy steel, Duplex stainless steel |
| End connection | RF, BW, RTJ, |
| Operation | Manual, Pneumatic, Electric, Hydraulic |

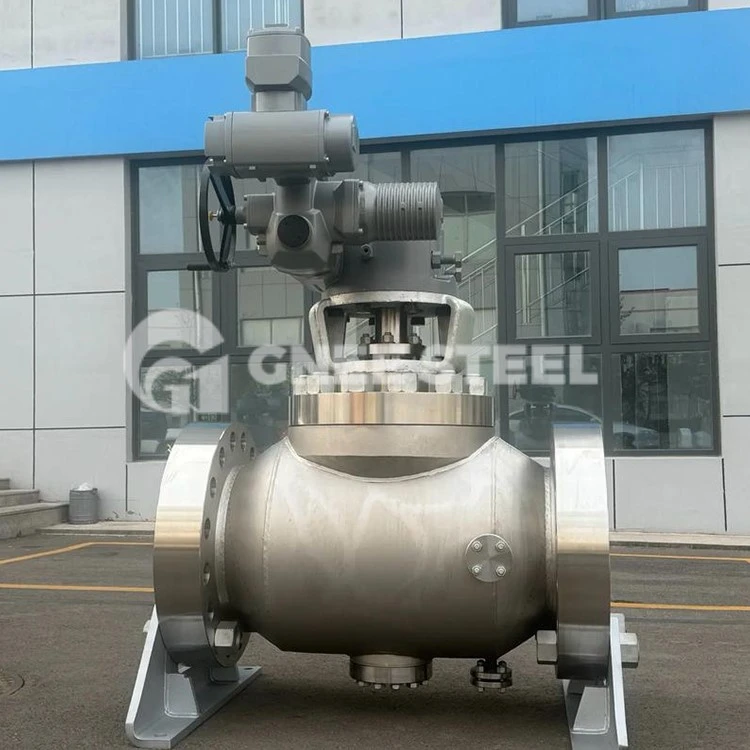

High Pressure Top Entry Ball Valve
FAQ
Q: Can you provide assembly drawings for confirmation?
A: Yes, we can provide drawings within 24 hours.
Q: Can you carry out non-destructive testing of valve components?
A: Yes, we can do ray test, penetration test, ultrasonic test, magnetic particle test, etc.
Q: Can we take samples for quality check?
A: Sure. You can provide the product model and we will prepare the sample within 7 days.
Q: Can you help with on-site maintenance and commissioning?
A: Yes, we are happy to help whenever you need. We can send our after sales team to deal with the problem within 4 days.
