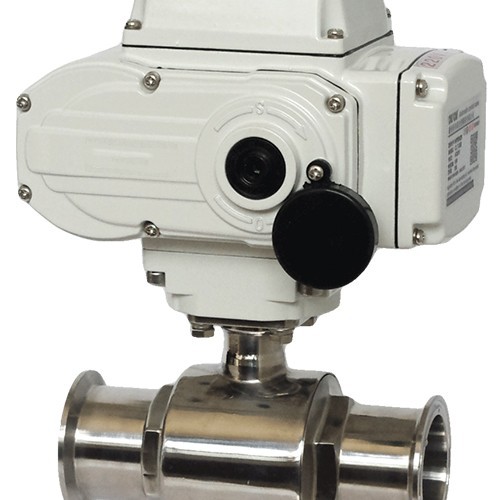

Electric sanitary ball valve Description
Sanitary electric ball valves are devices used for diverting, merging, and switching the flow direction of media in pipelines. They mainly consist of an electric actuator and a sanitary ball valve, also known as electric clamp ball valves or electric quick-connect ball valves. They use 304/316 stainless steel valve bodies and balls, with surfaces treated by standard electropolishing and sterilization. Connection methods include clamp type, quick-connect type, and threaded type. They are mainly used in coal chemical, petrochemical, rubber, papermaking, pharmaceutical, food, bioengineering, brewing, and water treatment industries.
GNEE Group specializes in the production of valves. Please contact us to obtain the drawings.
Electric sanitary ball valve specification
Nominal Diameter: DN15～DN100
Structure: One-piece
Valve Body Material: Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L
Nominal Pressure: PN10
Operating Temperature: ≤180℃
Applications: Beer, food, biological, pharmaceutical, beverage, dairy, etc.
Product Features: Meets hygiene standards and satisfies the special requirements of media in the food and pharmaceutical industries.
Electric sanitary ball valve Actuator technical parameters
| Parameter | Details |
|---|---|
| Output Torque | HR: 50N·M~2000N·M; HQ: 50N·M~3000N·M |
| Action Range | 0~90°, 0~360° |
| Action Time | 15s/30s/60s |
| Protection Device | Overheat protection |
| Ambient Temperature | -30°~60° |
| Manual Operation | Equipped with handle and handwheel as accessories |
| Limit | Dual electrical and mechanical limit |
| Protection Class | Equivalent to IP-65 |
| Explosion-Proof Class | ExdII BT4; ExdII BT6 available for special requirements |
| Position Measurement | Optional switch or potentiometer |
| Drive Motor | 8V/E |
| Incoming Line Interface | PE1/2" incoming line lock |
Electric sanitary ball valve Features
1. Sanitary Material: Made of 304 or 316L stainless steel, meeting hygiene requirements, non-toxic, rust-proof, corrosion-resistant, easy to clean, and without dead corners.
2. Safe and Reliable: Employs a reliable sealing structure and valve material to ensure no leakage during use, guaranteeing safety in the production process.
3. Flexible Operation: Can be operated manually or with an electric actuator, enabling on/off, regulating, and intelligent control modes, offering simple and flexible operation.
4. Accurate Positioning: The electric actuator provides fast response and accurate positioning, precisely controlling the valve's opening and closing.
5. Wide Applicability: Suitable for fluid control in food, pharmaceutical, beverage, chemical, textile, petrochemical, and bioengineering industries, widely used in process control across various sectors.
6. Convenient Maintenance: Simple and convenient maintenance, easy disassembly and assembly, and easy parts replacement. It also possesses durability and stability, making it less prone to failure even after long-term use.
Electric sanitary ball valve Applications
Pharmaceutical Industry: Used in liquid delivery pipelines of injection and oral drug production lines. Made of 316L material with Ra≤0.4μm polishing, compliant with GMP standards; electric control enables remote operation in sterile workshops to avoid药液 contamination from human contact.
Food Industry: Applied in raw material and finished product pipelines of juice and dairy production lines. Quick-install structure facilitates CIP cleaning, preventing juice residue from fermenting and deteriorating.
Cosmetics Industry: Utilized in production pipelines for cosmetic serums and shampoos. 316L material resists surfactant corrosion, and dead-end-free structure avoids raw material residue affecting product quality.
Biological Industry: Used in vaccine and biological agent R&D pipelines. Sanitary-grade materials combined with explosion-proof electric actuators meet the cleanliness and safety requirements of biosafety laboratories.
Other Fields: Employed in clean medium control for health products (e.g., oral liquids) and drinking water treatment to ensure product hygiene and safety.
Electric sanitary ball valve Factory
GNEE Group owns hundreds of valve production and testing equipment, and provides customized valve services-send us your drawings, and we'll tailor-make them for you.
