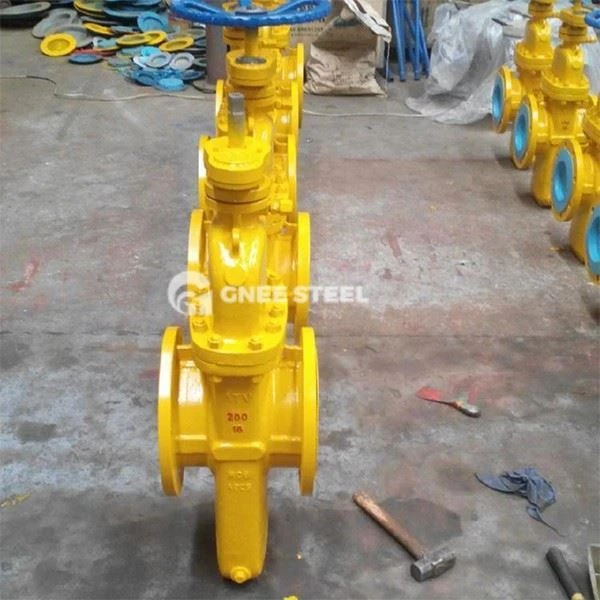

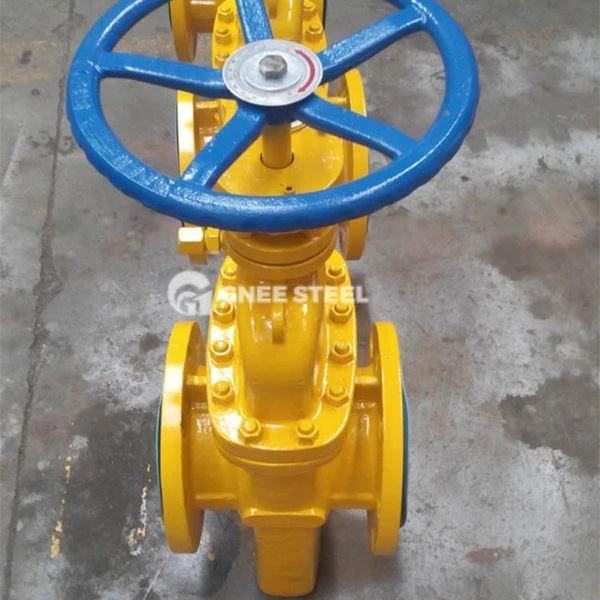

gas gate valve Description
Gas gate valve is designed for gas, liquefied petroleum gas, natural gas and other media design of the cut-off device, through the gate vertical movement to achieve pipeline on and off control, the core objective is to solve the impurities in the gas medium (such as tar, particulate matter) caused by the shut-off of the problem of not tightly, open, etc., to achieve zero leakage.
Core structure and type
Main components:
Valve body and gate plate:
The material mostly adopts grey cast iron, ductile iron or stainless steel, and the pressure-resistant grade can reach high-pressure class B (PN40/Class 2500);
Parallel double gate design: to scrape off impurities on the sealing surface (e.g. 'gas glue') to avoid jamming;
Knife gate: shearing function for gas media containing fibres or solid particles.
Stem protection sleeve: to prevent corrosive substances in the gas from eroding the stem.
Driving method:
Manual operation: for small diameter or low pressure scenarios;
Electric actuator: integrated remote control function, suitable for industrial automation system.
Sealing design:
Oil Sealed Plug Valve: Enhance air tightness by filling the sealing surface gap with grease;
Resilient seat: adaptive sealing surface deviation, leakage rate meets Class VI standard.
gas gate valve specification
|
Size Range
|
1/2 in to 16 in
|
Connection
|
Flange Connection
|
|
Material
|
Stainless Steel 304/316/316L, WCB, Cast Iron
|
Pressure
|
16/25/40 bar
|
|
Liquid Tmperature
|
-10 to 425℃
|
Suitable Medium
|
Water, Oil, Gas, etc.
|
|
Flange Standard
|
ANSI, JIS, DIN, GB standard
|
Types For Choice
|
Rising stem gate valve, non-rising stem gate
|
|
Pressure
|
Class 150/Class 300/Class 600
|
Inspection and Test
|
ISO5208, API598
|
|
Connection Dimension
|
ASME B16.5, ASME B16.25
|
Face to Face
|
ASME B16.10
|
|
Design & Manufacture
|
ASME B16.34, API600
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|

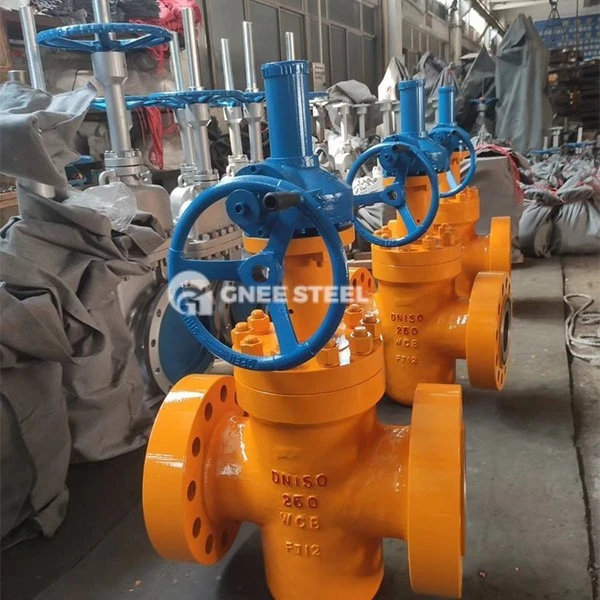

gas gate valve
Applications
Urban gas supply: gas pipeline cutoff for residential, commercial and industrial users; Industrial process control: medium flow management in the chemical, petroleum and natural gas industries; Emergency safety system: rapid pipeline cutoff in case of gas leak to prevent the accident from spreading.
