Fire Safe Butterfly Valve

‌Fire safe butterfly valve‌ is a type of butterfly valve designed for fire protection systems. It achieves rapid fluid shutoff or throttling control by rotating the butterfly plate (disc-shaped valve disc). Its core function is to maintain structural integrity and sealing when a fire occurs to prevent the fire from spreading through the pipeline. This type of valve has both the adjustment capability and fire safety characteristics of conventional butterfly valves and is widely used for emergency isolation in high-temperature and flammable scenes.

Core structure and function‌
‌Valve body and butterfly plate‌
‌Valve body material‌: Usually cast steel, stainless steel or galvanized steel is used to ensure that it does not deform or melt at high temperatures (≥300℃); ‌Butterfly plate design‌: Double eccentric or triple eccentric structure to reduce opening and closing friction, avoid high-temperature jamming, and carbide cladding sealing surface improves wear resistance.
‌Fireproof sealing system‌
‌Main seal‌: Metal hard seal (such as stainless steel + graphite composite layer) or elastic seal (applicable in the early stage of fire); ‌Auxiliary protection‌: Fireproof fillers such as ceramic fiber are filled at the valve stem to prevent high temperature from damaging the transmission function of the actuator.
‌Signal feedback module‌

Integrated position sensor or mechanical contact, real-time monitoring of valve opening and closing status, linkage fire alarm system (such as signal butterfly valve);
Support remote control of electric/pneumatic actuators to achieve automatic response to fire.

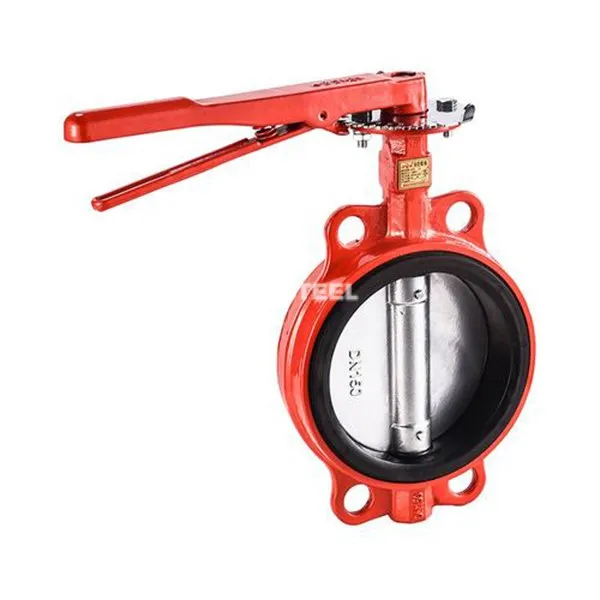

fire safe butterfly valve
