The pressure-balanced plug valve is a wide-gate device that controls the flow and shut-off of the medium by rotating the plug. By rotating the plug, the size and direction of the channel are adjusted to achieve the opening, closing, and regulation of the medium.
Product Specification
| Design | API 6D, API599 |
| Pressures range | ANSI 150 ~ANSI 900 ,PN10~PN150 |
| Size range | DN50(2") ~DN350 (14") |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc. |
| NACE MR-01-75/NACE MR-01-03 Special Requirements | |
| Face to face | API 6D, ASME B 16.10,EN 558,DIN3202 |
| Fanged RF, FF, RTJ Ends | ASME B16.5 |
| BS 4504,DIN 2543-2545,EN1092 | |
| Butt-Weld BW Ends | ASME B16.25 ,DIN 3239,BS 2080, EN 12627 |
| Temperature range | -29°~ 350°C |
| Design feature | |
| Construction | Lifted type,sleeve type,inverted type,jacketed type |
| Port | Full bore and Reduced bore |
| Plug Type | plug type |
| Stem | Blowout-proof stem |
| Seat Sealing | metal seat,soft seat,lubricated seal, |
| Valve Operation | Gear,pneumatic,Hydraulic,Electric actuators. |
| By passes,locking devices,extended stem,etc | |
| Fire Safe | API 607, BS 6755,API599 |
| Other design | Anti-static design,automatic pressure relief design, emergency grease injection design, drain valve, anti-corrosion design, anti-sulfur design,etc |

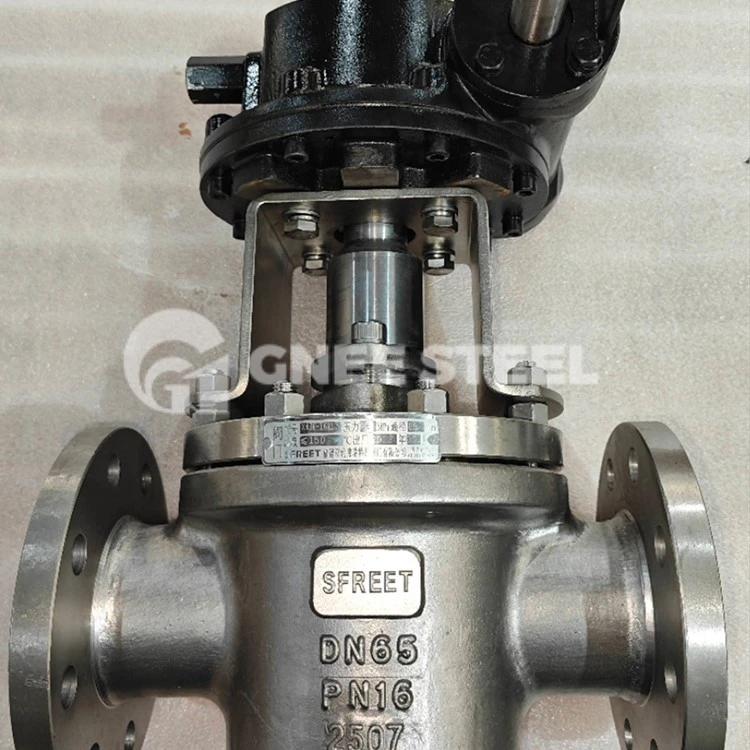

Pressure Balanced Plug Valves
