The high-pressure flange ball valve uses a manual (or electric) actuator to drive the spindle and rotate the ball through a 90° range, allowing it to cut off, connect, or regulate the flow. Whether driven by a worm gear, electric motor, or pneumatic system, the valve has a finite position mechanism for both opening and closing. Additionally, there is an indicator mechanism to show the ball's position.
Product Specification
Size: 2"~48" (DN50~DN1200)
W. P.: Class150-2500
W. T.: -20ºC ~400ºC (-4ºF~752ºF)
Design: BS 1868
Flange Dimension: ASME B16.5
Face to Face: ASME B16.10
Inspection and test: API 598/API 6D
Material: WCB, WC6, WC9, LCB,CF8, CF3, CF8M, CF3M, CN7M, Monel and Hast. etc.
Dics and Stem: WCB,SS304, SS316,SS304L,SS316L,SS410,SS416.etc
Offshore /Oil /Gas /Chemical /Petrochemical Pulp /Paper /Water /Wastewater /Marine

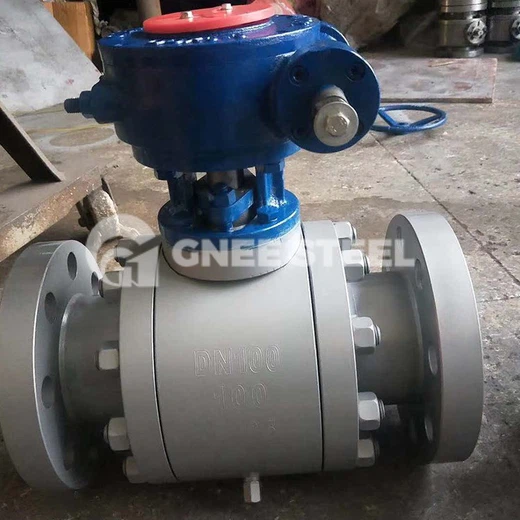

Flanged Ball Valve
FAQ
1. What are the temperatures and pressures of the valves?
For metal seat valves, the temperature range is -196ºC to 425ºC. For soft seat ball valves, the temperature range is -29ºC to 200ºC. The pressure range is from PN6 to PN420 (150LB to 2500LB).
2. What materials are used for the valves?
The valves are made from stainless steel, forged stainless steel, alloy steel, duplex steel, titanium alloy, nickel-aluminum alloy, and other materials. Specific material requirements can be consulted at any time.
3. What is the delivery time?
Our factory is near Ningbo and Shanghai ports. Generally speaking, it takes 7-10 days for export to Asia and 30-35 days for export to Europe, the Middle East, Africa, North America, South America, etc. by sea.
4. What media are your valves used for?
The valves are mainly used for water, natural gas, and oil. When requesting a quotation, it is better to provide details about your medium so we can recommend the appropriate material and valve type.
