Products Description
The casting two-piece floating ball valve primarily consists of the valve body, bonnet, stem, ball, and seats. When the ball rotates to contact the seat, the valve is in the closed position; when the ball rotates away from the seat, the valve is in the open position. The opening and closing action of the valve is achieved by a driving device (e.g., pneumatic, electric, hydraulic, etc.) that moves the stem.
The two-piece structure enhances the stability of the ball, ensuring it remains centered even under high differential pressure, effectively preventing ball jamming or misalignment and extending the valve's service life. The floating design allows the ball to slightly shift under medium pressure, automatically adjusting and sealing against the seat, further improving sealing performance. This ensures a tighter shut-off, preventing medium leakage when the valve is closed.
Products Specification
Design Specifications: AP16D, ANSI B16.34
Flange Connection Length: AP16D, ANSI B16.10
Welded Length: AP16D, ANSI B16.10
Connecting Flanges: ANSI B16.5, B16.47
Butt-Weld Ends: ANSI B16.25
Testing and Inspection: AP16D, AP1598
Nominal Diameter: NPS 1/2" to 10"
Nominal Pressure: Class 150 to 900 Lb
Applicable Media: Water, Steam, Oil, Mildly Corrosive Media
Applicable Temperature: ≤180°C
Material: Carbon Steel Cast Steel, Chrome-Nickel Stainless Steel
Features of Casting Two-Piece Floating Ball Valve
Flexible Operation:
The two-piece ball valve is easy to operate-only a slight turn of the handle is needed to open or close the pipeline.
Features low operating torque, ensuring user-friendly control.
Excellent Sealing Performance:
Uses a piston-type sealing structure between the ball and seat, providing bi-directional sealing.
Completely isolates the medium from the external environment, preventing leakage.
High Reliability:
The ball structure ensures a flat sealing surface with the seat, achieving superior sealing.
The smooth flow path minimizes fluid resistance, ensuring stable medium transport in pipelines.
Easy Maintenance:
The ball and seat assembly can be independently disassembled for servicing.
No need to dismantle the entire pipeline system, saving time and labor costs.

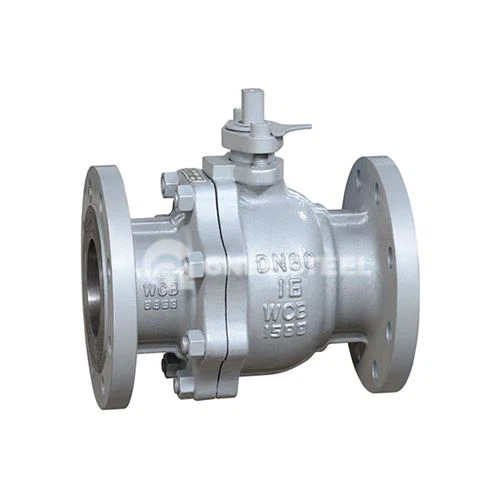

Cast Two-Piece Floating Ball Valve for sale
